Hard Shell Side Open Rooftop Tent, 2~3 Person, Black

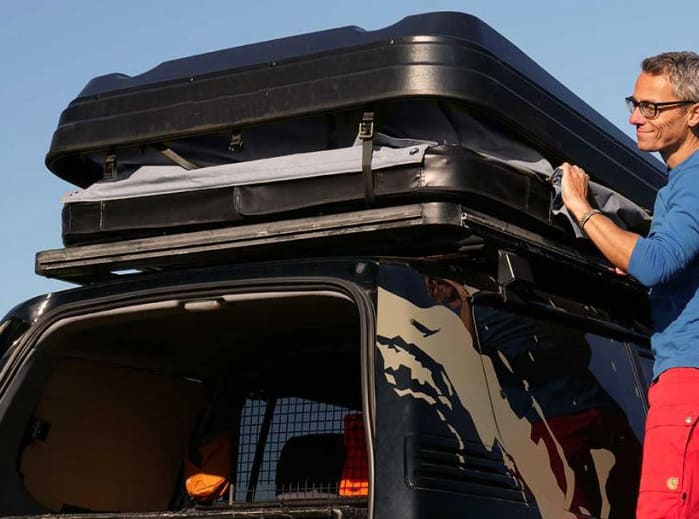

- Lift the tent onto your crossbars (you'll need a friend or two) with the big end facing the back (the front of the tent shell is lower than the back).
- Make sure the tent is positioned roughly where you want it. For SUVs and hatchbacks, open the trunk and push the tent back until it just touches the open trunk. This allows you to ensure that the tent does not interfere with the operation of your trunk.
- Ready to install the kit.
a. Insert the M8 bolts into the mounting plate (rail side up) and install the mounting U-brackets (concave side up). Then install a hex head bolt less than halfway down. Repeat three more times.
b. Prepare the four M8 bolts and plate set by attaching the M8 bolts to the mounting plate. Repeat three more times.
- Using the 4 original mounting kits with U-brackets, slide each mounting kit into the mounting rails, followed by the M8 bolts and plate set. Repeat for each corner of the tent.
- Start with a partner in the front or rear and lift up to slide the mounting kit inside the crossbar.
- Attach the mounting kit together by inserting the hanging M8 bolts into the mounting U-brackets and hand tightening the nuts onto the M8 bolts. Repeat for all four corners.
- Tighten the nuts evenly and snugly, making sure you have lined up the tent exactly where you want it on the roof before tightening the nuts last.
Click here for the Manual
LTL-Truck Shipping
Logistics I Transit Time I Costs
LTL Shipping I 7-15 days I FREE

Wedge Shape RTT, 2 Person
FEATURES
- 60s Quickly Set Up
- The Most Stable Wedge Shape
- With Easy Install Brackets
- Thermal iInsulation Shell
- No Need to Take Out Bedding
- 3 Entrances
- Removable and Washable Mattress
SLEEPS
2~3 Person
WEIGHT CAPACITY
900 lbs
CLOSED DIMENSIONS
83" x 49" x 14"h
OPEN DIMENSIONS
83" x 49" x 59"h
MATTRESS SIZE
82" x 48" x 2"h
ACTUAL WEIGHT
145 lbs
WINDOWS
3
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 2000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Alloy Frame & Wooden
PARTS
- 7.5' Telescoping
- Shoe Bags
- Stroge Bags
HARDWARE
- Metric Wrench *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8
- Elastic String *2

Ascendll RTT, 2 Person
FEATURES
- Unfolds in Just 10s
- Shell Just 8" for Aerodynamics
- Weights Minimal Impact on MPG
- Light-Suppressing Technology
- 100% Moisture Barrier
- Larger Wraparound Awning
- No Need to Take Out Bedding
SLEEPS
2~3 Person
WEIGHT CAPACITY
1000 lbs
CLOSED DIMENSIONS
83" x 49" x 8"h
OPEN DIMENSIONS
83" x 51" x 63"h
MATTRESS SIZE
82" x 49" x 2"h
ACTUAL WEIGHT
136 lbs
WINDOWS
3 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Tube Plate & Wooden
PARTS
- 7.5' Telescoping
- Stroge Bags
- Internal Storage Bags
HARDWARE
- Metric Wrench *2
- Hexagonal Spanner *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8
- Cam Lock *2

Ascendll RTT, 3 Person
FEATURES
- Unfolds in Just 10s
- Shell Just 8" for Aerodynamics
- Weights Minimal Impact on MPG
- Light-Suppressing Technology
- 100% Moisture Barrier
- Larger Wraparound Awning
- No Need to Take Out Bedding
SLEEPS
3~4 Person
WEIGHT CAPACITY
1000 lbs
CLOSED DIMENSIONS
83" x 52" x 8"h
OPEN DIMENSIONS
83" x 54" x 63"h
MATTRESS SIZE
82" x 50" x 2"h
ACTUAL WEIGHT
160 lbs
WINDOWS
3 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Tube Plate & Wooden
PARTS
- 7.5' Telescoping
- Stroge Bags
- Internal Storage Bags
HARDWARE
- Metric Wrench *2
- Hexagonal Spanner *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8
- Cam Lock *2
WHAT KINDS OF VEHICLES WOULD FIT IN RTT?

Quickest Deployment
There is no other tent that can compare with it. Just loosen the strap, push the upper shell slightly, and let the two gas springs do the rest. The rooftop tent stands proudly in 30 seconds with no action required.

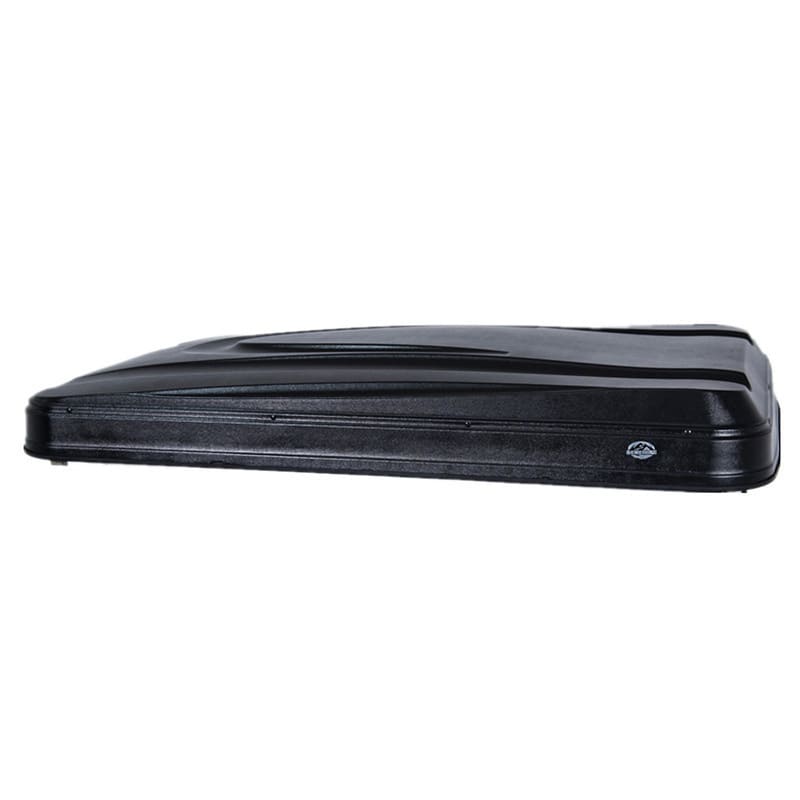

Cover made of ABS
Because ABS is a plastic with three major advantages: light weight, 100% recyclable, and strong corrosion resistance. To give the outer shell its strength, a reinforced structure of metal and aluminum is used inside.

Insulated Tent Body
The tent itself is constructed from a three-layer body to keep you warm in winter and cool in summer. It's sonically welded and moisture-wicking, and its 280g fabric is 70% polyester and 30% cotton, with some fire resistance. The inside of the fabric is coated with PU, making it 100% waterproof.

Thicker Mattress
The mattress is made of high-density slow foam surrounded. Paired with anti-condensation pads for an extra boost in comfort and ventilation.

Bigger Vision
Huge floor-to-ceiling windows allow you to bathe in the afterglow of the setting sun
