270° Freestanding Batwing Awning, 6.56' ft, Gen 2

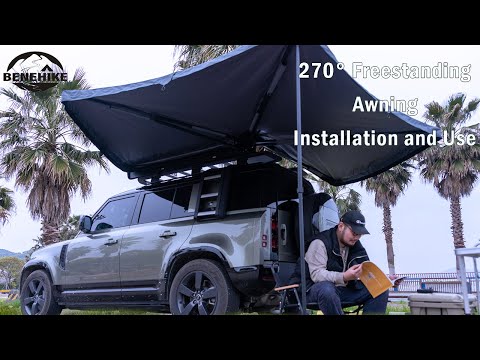

Locating Tent on your Vehicle
- Peel the PVC cover back at each end of theawning to expose the backing plate tracks. Insert the bolts heads into the backing plate tracks,thenreattach the PVC end covers.
- Position and attach the brackets in the required positionusing the provided nuts and washers,then tighten.
- Mount to the vehide using the provided U-bolts, nuts and washers.
Assembly
- Unzip the PVC cover and fold it back from the awning fabric
- Undo the three supporting straps and release the awning fabric.
- Take note of how the fabric is layered and packed to assist you with repacking the awning
- Swing the arms away from the awning until the fabric is fullyextended towards the front and rear of the vehicle. Use the tensioning strap to secure the awning in position at the front and rear of the vehicle.
- If being used in adverse weather conditions or if additionalstability is required, release the support poles attached to the swinging arms and adjust the pole height to the ground,then attach the provided guy lines and stakes for maximum support.
- Should it rain while your 270° awning is deployed,it is recommended that the support poles height is adjusted to allow a slight slope of the fabric,along with adjustment of the provided guy lines,allowing a "valley"to be formed between each swinging support arm. This will channel the water away from your vehicle and prevent excess weight sitting on the awning fabric overhead.
NOTE:
lt is recommended that the awning is assembled and installed by two (2) people. We further recommend having theawning installed by experienced 4x4 accessory installer.The awning brackets supplied have been designed to fit the most common configurations of roof racks and railsystems.
However, due to the ever-increasing variations being offered by vehicle and accessory manufacturers, wecannot guarantee that these will fit all available options.
It is recommended that you speak to your roof rackspecialist for further advise or recommendations on thebest system for your requirements.
Ensure that the minimum spacing between themounting brackets is to be 47” (1200mm) to allow theawning to be supported correctly and the weight isdistributed evenly.
For more information see our Manual.
Logistics I Transit Time I Costs
Standard I 5-10 days I FREE
Expedited I 3-7 days I $39.99
Fast I 5 days I $69.99
270° Awning, 8.2' ft
FEATURES
- 30s Pull System
- 99% UV Protection
- 3 Telescoping Poles
- Lightweight Aluminum Square Arms
- Quick Release Ratchet Straps
- More Stay Cable Attachment Points
- Compatible with Sidewalls, Extensions and Tents
SHADE
130 ft³
CLOSED DIMENSIONS
88" x 8" x 6"h
ADJUSTABLE HEIGHT
78.7”
AWNINGS
600D Oxford & 280G Polyester
FRAME
6063-T6 Aluminum Alloy
ACTUAL WEIGHT
53 lbs
COVER
1000G PVC Waterproof
ZIPPER
YKK
HARDWARE
- Metric Wrench *2
- L Brackets *2
- Washer *2
- 20mm M8 Bolt *4
- 55mm M8 Bolt *4
- M8 Nut *8
- String *3 Tent Pegs *3
- Stroge Bag *1
270° Awning, 6.56' ft
FEATURES
- 30s Pull System
- 99% UV Protection
- 3 Telescoping Poles
- Lightweight Aluminum Square Arms
- Quick Release Ratchet Straps
- More Stay Cable Attachment Points
- Compatible with Sidewalls, Extensions and Tents
SHADE
80 ft³
CLOSED DIMENSIONS
83" x 8" x 5"h
ADJUSTABLE HEIGHT
78.7”
AWNINGS
600D Oxford & 280G Polyester
FRAME
6063-T6 Aluminum Alloy
ACTUAL WEIGHT
51 lbs
COVER
1000G PVC Waterproof
ZIPPER
YKK
HARDWARE
- Metric Wrench *2
- L Brackets *2
- Washer *2
- 20mm M8 Bolt *4
- 55mm M8 Bolt *4
- M8 Nut *8
- String *3 Tent Pegs *3
- Stroge Bag *1
Customer Reviews
I am extremely pleased with the awning. It arrived in impeccable condition and was effortless to mount onto slotted crossbars. I plan to employ it as a source of shade during lunch breaks and for target practice in the desert. The awning can be set up and taken down quickly, making it highly convenient to use on a regular basis.
The awnings is amazing. I have it set up on my roof rack for my overland adventures. Its “space to weight” ratio is impressive. Durability is fantastic. Overall, it's pretty remarkable. Great awning. Great customer support!

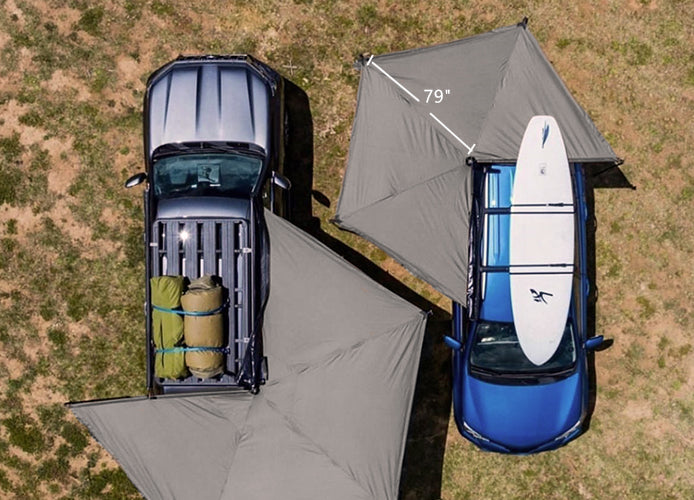

WHAT KINDS OF VEHICLES WOULD FIT IN AWNING?
80 ft³ of Space

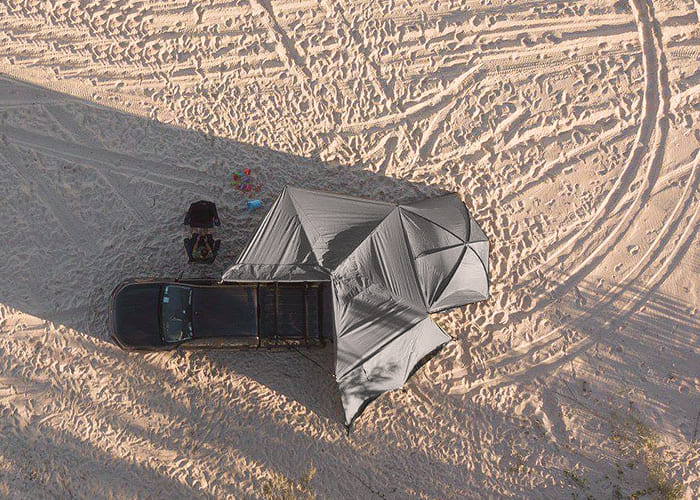

80 ft³ awning provides ample shade dimensions for outdoor activities. protecting from the sun's harmful rays from multiple angles. The batwing shape allows for additional coverage over the sides of the vehicle or shelter, providing a greater sense of privacy and protection.
Free Standing
At just 50 lbs, this batwing awning is impressively lightweight compared to its competitors. Whether you have a support pole or not, this canopy can withstand windy conditions without issue. However, for those extreme situations, it also comes equipped with support poles and tie-downs to provide added stability and security.
Fastest Set Up
Installing this awning is a breeze. You can have it set up in minutes, with no complicated instructions or tools required. Simply attach it to your roof rack or other suitable anchor points and you're ready to go!
Click the button below to read our 270 Awning instruction manual.
Durable Design
Its metal frame is made of aluminum alloy composite with the addition of a corrosion-resistant black powder coat for an excellent strength-to-weight ratio.
The 1000D PVC cover protects the awning when passing through the sharpest stones and includes UV resistant properties to avoid discolouration.
The awning fabric is 600D Oxford & 280G TC cotton ripstop, the same high quality fabric as our standard tents and has an inner coating to prevent abrasion.
Versatile Protection
Amidst unpredictable weather, deploy this portable shelter spanning 80 square feet to awnings against a sudden downpour or harsh sun.
Moreover, the shelter's encircling design safeguards your gear during loading and unloading. To enhance its resilience to weather elements, consider pairing with the corresponding annex room!
