Bivvyy Hard Shell Side Open Rooftop Tent, With Rainflys, 4 Person, Black
- Installing the tent requires at least 2 people to lift it.
- Your tent can only be opened on the passenger side. Place the tent on top of your vehicle's roof rack, bed frame, or trailer and center it to your liking.
- Using the included hardware and mounting plate, slide the hardware into the channel so that there are 2 bolts in each corner (one in front of the vehicle crossbar and one behind the vehicle crossbar).
- Thread the bolts through the mounting bracket holes and thread a nut onto each bolt.
- Confirm you are happy with the tent's position, vehicle balance and appearance, then tighten all nuts to the brackets until the tent cannot move.
- Unclip the side of the tent, push the handle up to activate the hydraulic lever to open the tent, pull out the telescoping ladder until it is fully extended, pull the ladder down until the tent has been fully opened and extended.
- Reposition the ladder to your desired height and angle.
- Attach the included pull rods to the tent and window overhangs, open the door, and enjoy!
- For detailed information please view our Manual
Note:
Your vehicle must have crossbars (left to right) capable of supporting at least 150+ pounds, and your crossbars should be at least 30 inches apart for proper support.
Pickup Trucks: We highly recommend using a truck bed. We do not recommend putting tents on top of trucks.
Rooftop tents are not vehicle-specific. You will need to provide a stable roof rack that will support the weight of the tent on top in addition to supporting the people inside the tent. Please check your vehicle manual for relevant data.
Heavy duty crossbars (left to right) are required to support the weight of the tent, we recommend checking your factory rail system (front to back) to verify it can hold the weight of the tent and the people inside. The maximum width of your rail should be 3.25" or less, so you can use the brackets provided without modification. If your rail is wider than 3.25", you will need to purchase the bracket from another source or have them make it for you.
LTL-Truck Shipping
Logistics I Transit Time I Costs
LTL Shipping I 7-15 days I FREE

Bivvyy RTT, 4 Person
FEATURES
- Queen-Sized Sleeping Area
- Small Footprint
- Sloped Aerodynamic Shell
- MPG Friendly
- Bedding to be Keept Inside
- Applicable to 90% of Vehicles
- 60s Quickly Set Up
SLEEPS
3~4 Person
WEIGHT CAPACITY
1000 lbs
CLOSED DIMENSIONS
83" x 53" x 14"h
OPEN DIMENSIONS
83" x 83" x 47"h
MATTRESS SIZE
60" x 44" x 2"h + 53" x 34" x 2"h
ACTUAL WEIGHT
216 lbs
WINDOWS
4 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Alloy Frame & Wooden
PARTS
- 7.5' Telescoping
- Shoe Bags
HARDWARE
- Metric Wrench *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55mm Bolt *8
- M8 Bolt *8
- M8 Nut *8
- Elastic String *2

Bivvyy RTT, 3 Person
FEATURES
- Queen-Sized Sleeping Area
- Small Footprint
- Sloped Aerodynamic Shell
- MPG Friendly
- Bedding to be Keept Inside
- Applicable to 90% of Vehicles
- 60s Quickly Set Up
SLEEPS
2~3 Person
WEIGHT CAPACITY
1000 lbs
CLOSED DIMENSIONS
62" x 49" x 14"h
OPEN DIMENSIONS
83" x 65" x 47"h
MATTRESS SIZE
44" x 60" x 2"h + 53" x 34" x 2"h
ACTUAL WEIGHT
156 lbs
WINDOWS
4 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Alloy Frame & Wooden
PARTS
- 7.5' Telescoping
- Shoe Bags
HARDWARE
- Metric Wrench *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55mm Bolt *8
- M8 Bolt *8
- M8 Nut *8
- Elastic String *2

Expanded Soft Shell RTT, 3 Person
FEATURES
- 90s Quickly Set Up
- Quickly-Open Clam Shape Design
- Applicable to 90% of Vehicles
- All-Terrain Adaptation
- Small Footprint
- 59" of Headroom
- Insulation in Winter
SLEEPS
3~4 Person
WEIGHT CAPACITY
900 lbs
CLOSED DIMENSIONS
55" x 122" x 12"h
OPEN DIMENSIONS
55" x 122" x 51"h
MATTRESS SIZE
54" x 121" x 2"h
ACTUAL WEIGHT
132 lbs
WINDOWS
4 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Alloy Frame
PARTS
- 7.5' Telescoping
- Stroge Bags
HARDWARE
- Ladder Bracket *2
- Rubber Washer *2
- 55mm M8 Bolt *8
- 40mm M6 Bolt *8
- 16mm M6 Bolt *2
- Mounting Plate *4
- Slide Plate *8
- M8 Nut *8
- M6 Nut *10
- Stainless Steel Washer *20
- Metric Wrench *2
- Mounting Channel *2
WHAT KINDS OF VEHICLES WOULD FIT IN RTT?

Ultra Fast Setup
Designed with two 2 hydraulic props, the tent can be opened easily. Spending no less than a minute lying in the RTT means you can enjoy more relaxation and time with your family.

Smallest Footprint
Measuring 83" x 53" when closed, this side drive top tent fits perfectly with the stand on the back bed of your rig or pick-up truck

Built for Comfort

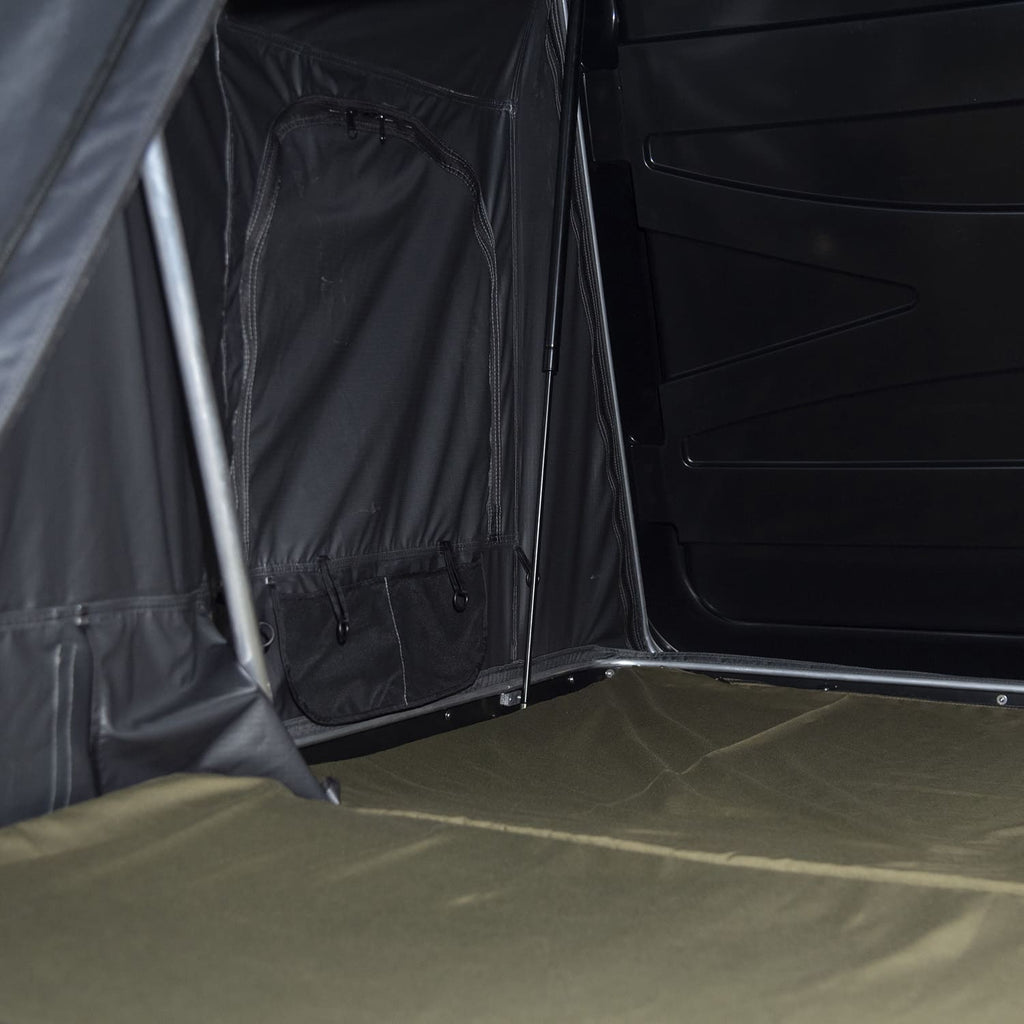

The spacious sleeping area has a built-in 2-inch thick mattress, which can definitely accommodate 2 people (or more), which is the ultimate luxury!

All Season Protection
Our 600D tent fabric stands up to extreme weather. A water-resistant and UV-resistant polyurethane coating has been added for a tough shelter from the elements.

Bigger Views
Unlike other tents on the market, the Bivvyy™ RTT has maximum field of view. Gaze under the stars, or roll up all the windows to let the morning breeze in and immerse your camper in the natural landscape.
