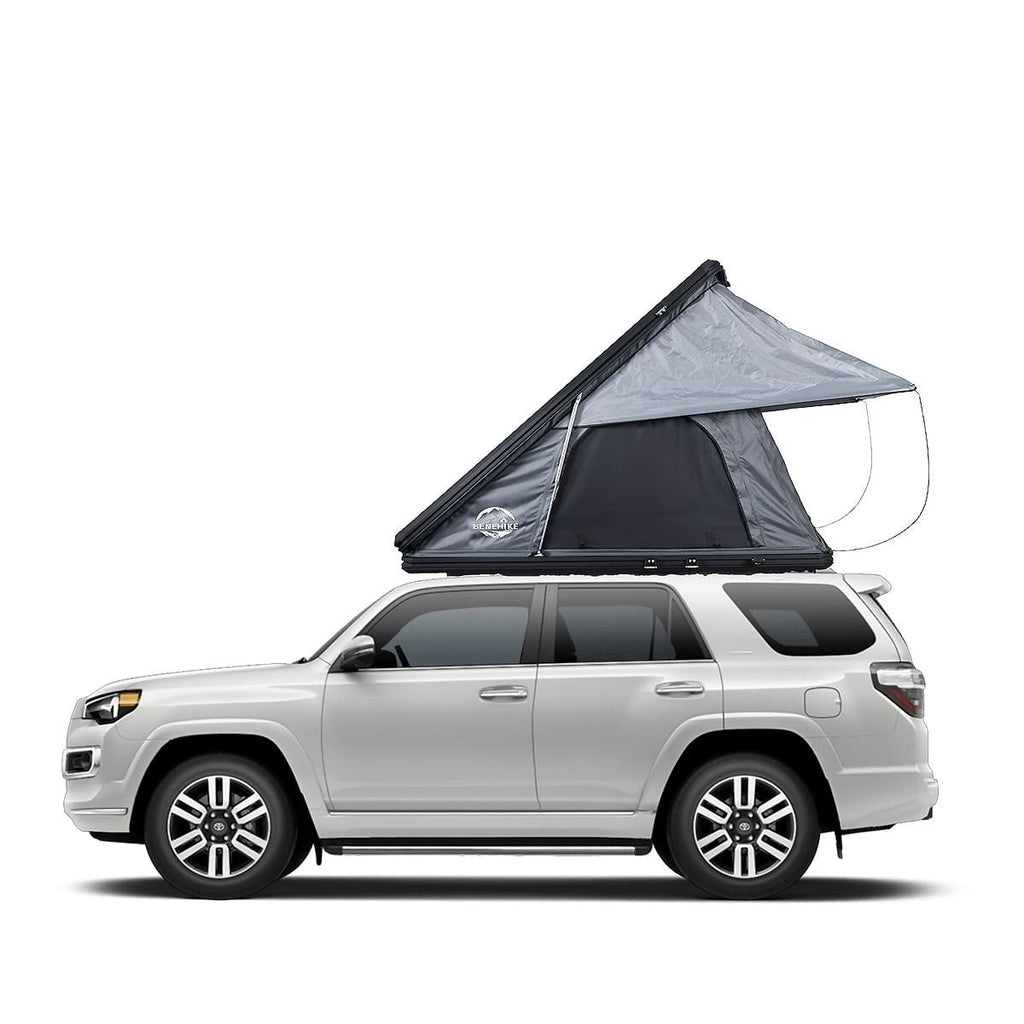

Ascendll Aluminum Hard Shell Side Open Rooftop Tent, 2 Person
- Ascendll™ is designed to mount to two rails that are at least 30 inches apart. Platform mounts are available, but not required, and can make installation trickier in some cases.
- On some makes of vehicles, the stock cross bar is too close to the roof to provide clearance for the mounting hardware. In these cases, we recommend that you contact our customer service team for resolution.
- The Ascendll™ weighs 136 lbs and your crossbar should be able to support the weight of the tent itself. Your cross bars are rated for dynamic loads (when your vehicle is traveling at highway speeds) and can hold 5-7 times that rated dynamic load when your car is parked. Almost all modern cars and crossbars can support the weight of the Ascendll™ and its occupant without any problem.

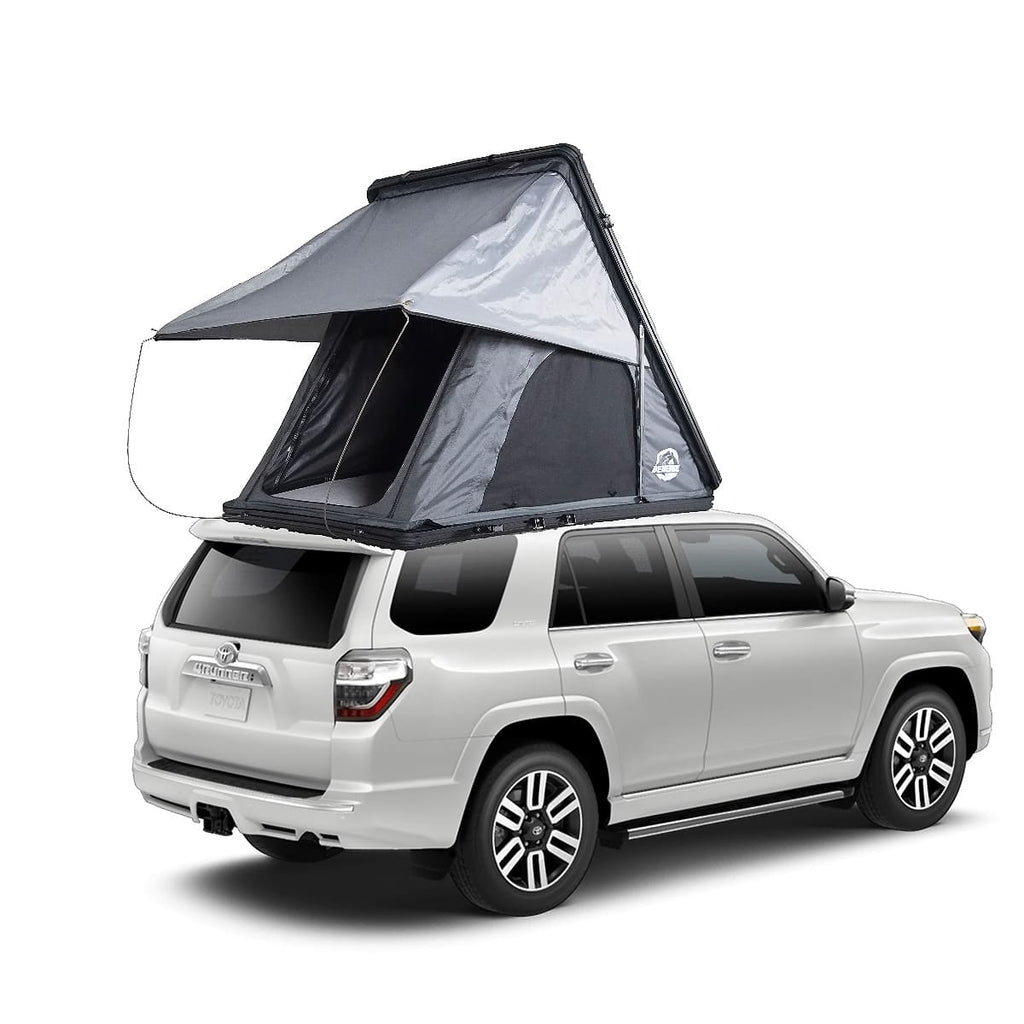

- Lift the tent onto your crossbars (you'll need a friend or two) so that the large end of the Ascendll™ is facing the rear of the vehicle and the hinges are at the front of the vehicle.
- Make sure the tent is positioned roughly where you want it. Usually if it looks in-game it's correct! For SUVs and hatchbacks, open your trunk and push the tent back until it just touches the open trunk. This way you can make sure the tent doesn't interfere with the operation of your trunk.
- Ready to install the kit.

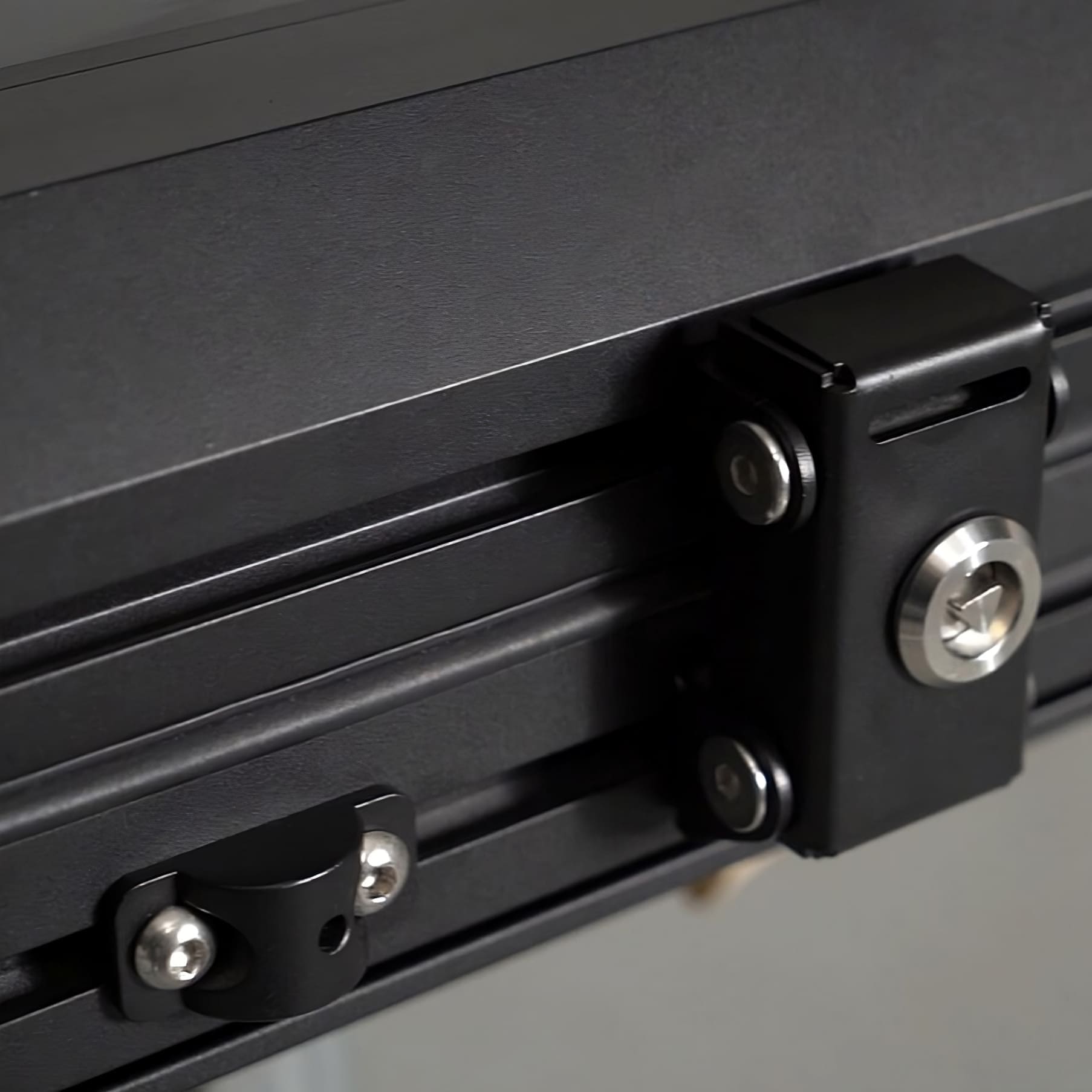

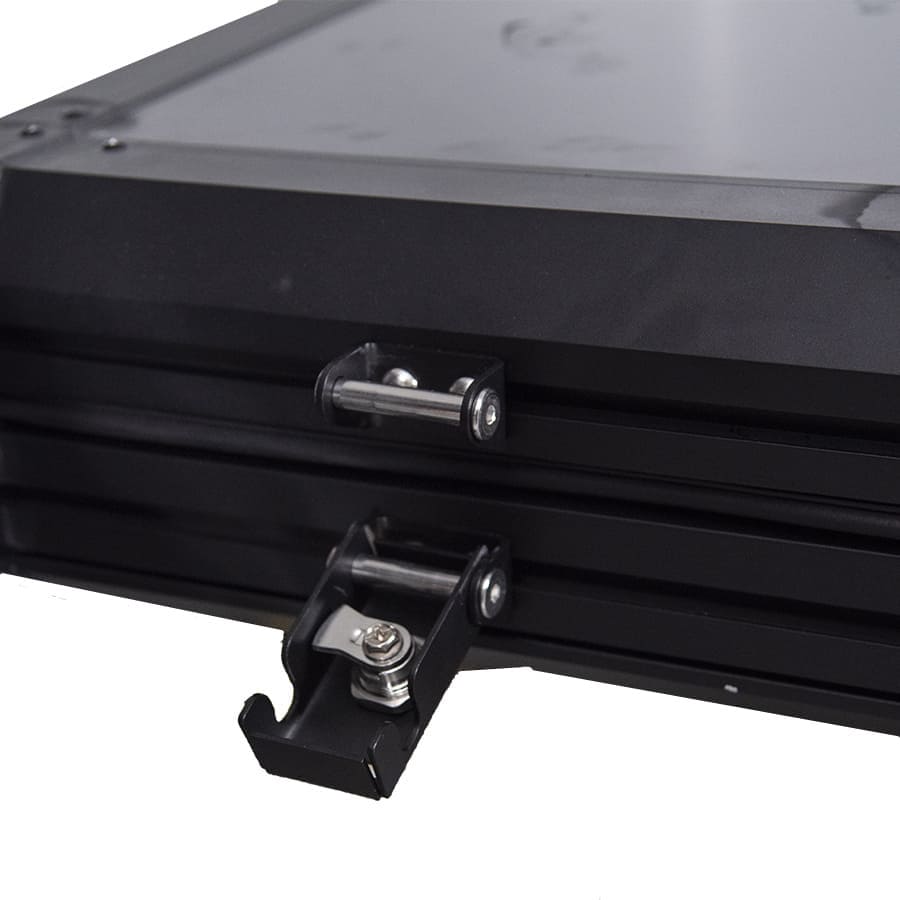

- Using the 4 original mounting kits with U-brackets, slide each into the mounting rails, followed by the M8 bolt and plate kit. Repeat for each corner of the tent.
- Start with a partner in the front or back, then lift up the front or back and slide the mounting kit onto the inside of the crossbar, repeating for each corner.
- Thread the dangling M8 bolts through the mounting U-brackets, then hand-tighten the nuts to attach the mounting kit to the M8 bolts. Repeat for all four corners.
- Tighten the nuts evenly and snugly, making sure you have the Ascendll™ lined up exactly where you want it on the roof before tightening the nuts last. When your hardware is properly tightened, the bottom bracket around the bars will start to flex.
For more information please view our Manual, or contact the customer service team.
LTL-Truck Shipping
Logistics I Transit Time I Costs
LTL Shipping I 7-15 days I FREE

Ascendll RTT, 2 Person
FEATURES
- Unfolds in Just 10s
- Shell Just 8" for Aerodynamics
- Weights Minimal Impact on MPG
- Light-Suppressing Technology
- 100% Moisture Barrier
- Larger Wraparound Awning
- No Need to Take Out Bedding
SLEEPS
2~3 Person
WEIGHT CAPACITY
1000 lbs

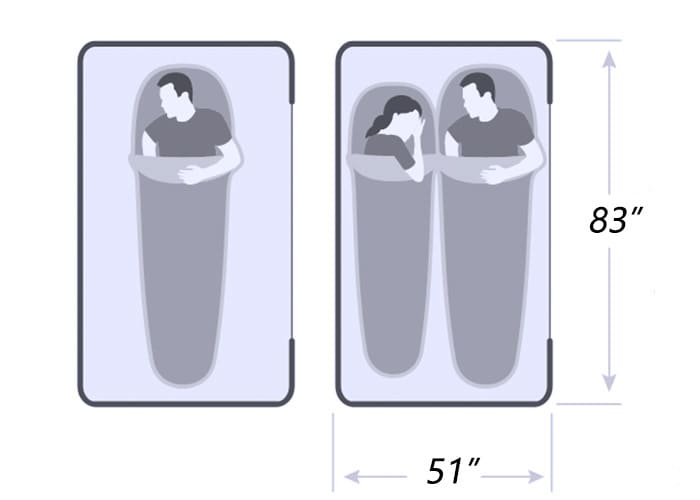

CLOSED DIMENSIONS
83" x 49" x 8"h
OPEN DIMENSIONS
83" x 51" x 63"h
MATTRESS SIZE
82" x 49" x 2"h
ACTUAL WEIGHT
136 lbs
WINDOWS
3 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Tube Plate & Wooden
PARTS
- 7.5' Telescoping
- Stroge Bags
- Internal Storage Bags
HARDWARE
- Metric Wrench *2
- Hexagonal Spanner *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8

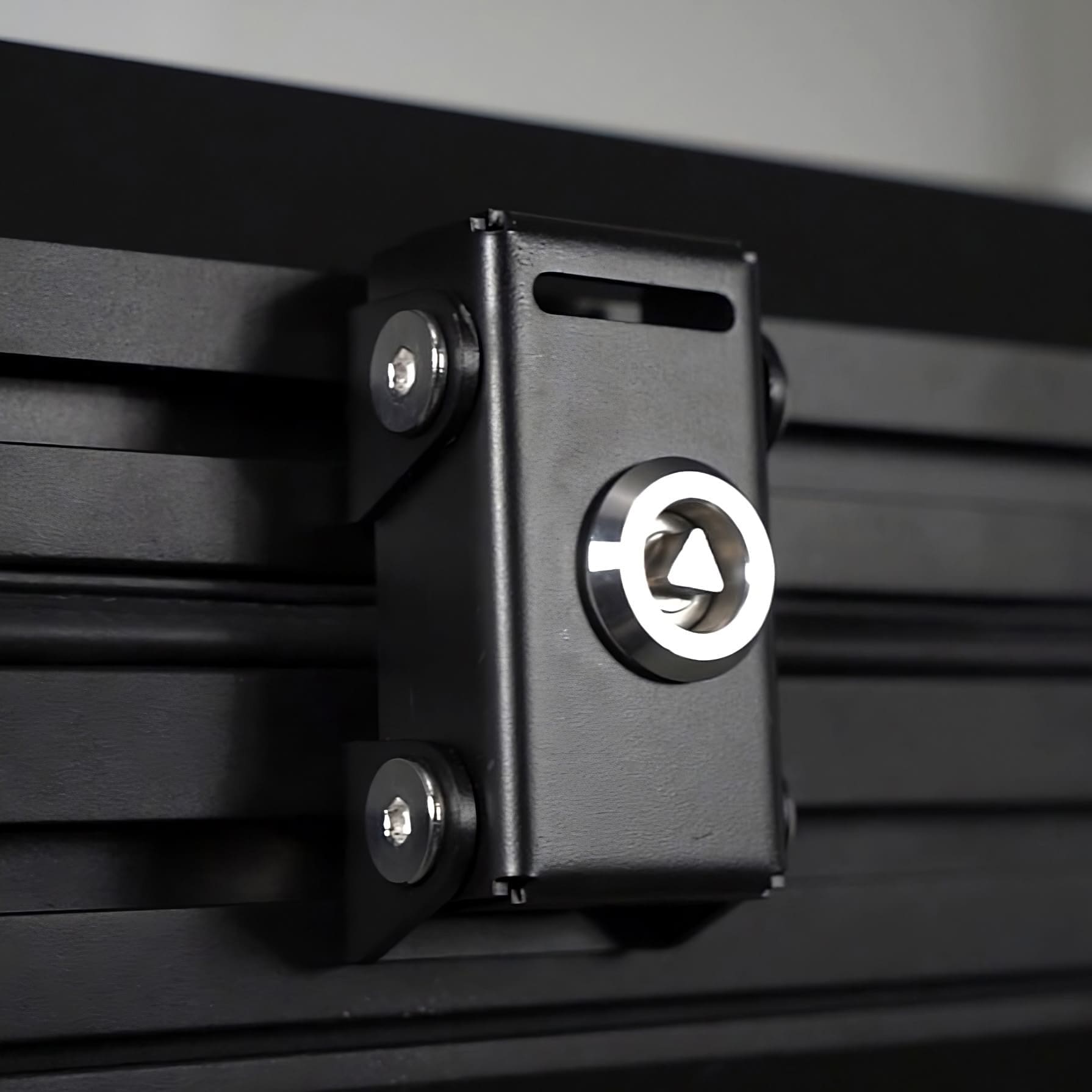

- Cam Lock *2

Ascendll RTT, 3 Person
FEATURES
- Unfolds in Just 10s
- Shell Just 8" for Aerodynamics
- Weights Minimal Impact on MPG
- Light-Suppressing Technology
- 100% Moisture Barrier
- Larger Wraparound Awning
- No Need to Take Out Bedding
SLEEPS
3~4 Person
WEIGHT CAPACITY
1000 lbs
CLOSED DIMENSIONS
83" x 52" x 8"h
OPEN DIMENSIONS
83" x 54" x 63"h
MATTRESS SIZE
82" x 50" x 2"h
ACTUAL WEIGHT
160 lbs
WINDOWS
3 (w/ door)
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 3000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL

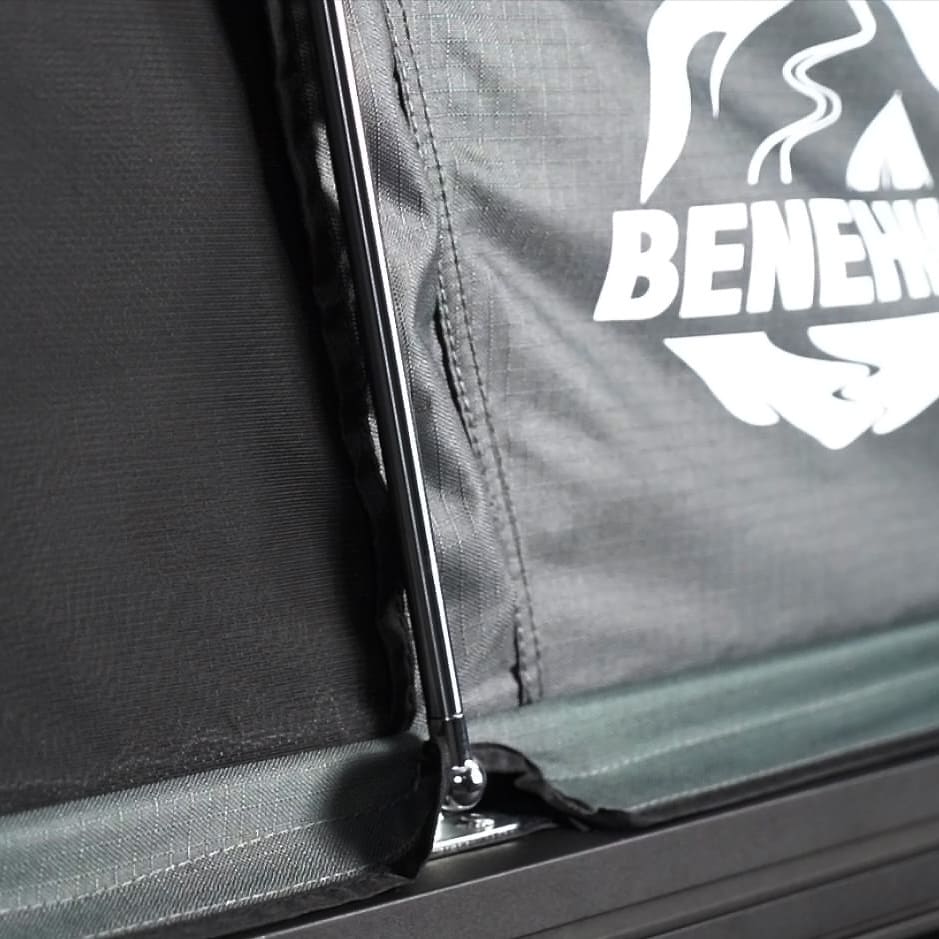

5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Tube Plate & Wooden
PARTS
- 7.5' Telescoping
- Stroge Bags
- Internal Storage Bags
HARDWARE
- Metric Wrench *2
- Hexagonal Spanner *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8

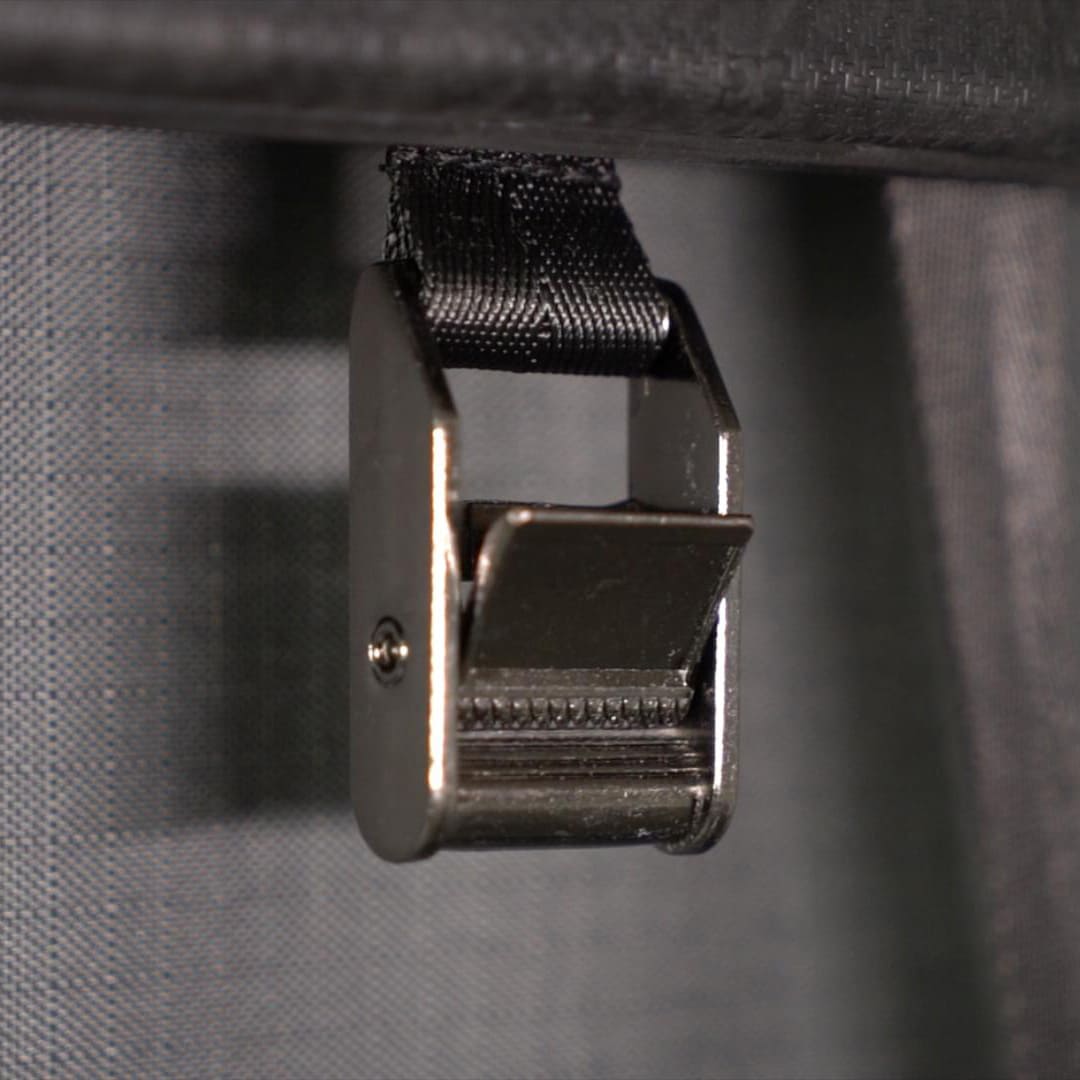

- Cam Lock *2

Wedge Shape RTT, 2 Person
FEATURES
- 60s Quickly Set Up
- The Most Stable Wedge Shape
- With Easy Install Brackets
- Thermal iInsulation Shell
- No Need to Take Out Bedding
- 3 Entrances
- Removable and Washable Mattress
SLEEPS
2~3 Person
WEIGHT CAPACITY
900 lbs
CLOSED DIMENSIONS
83" x 49" x 14"h
OPEN DIMENSIONS
83" x 49" x 59"h
MATTRESS SIZE
82" x 48" x 2"h
ACTUAL WEIGHT
145 lbs
WINDOWS
3
TENT MATERIAL
- 600D Oxford & 280G Polyester
- PU 2000mm
- UPF 50+
RAINFLY MATERIAL
- 420D Oxford
- PU 2000mm
- UPF 50+
MATTRESS MATERIAL
High-Density 2" Foam
ENTRANCE MATERIAL
Panel & Mesh
UPPER MATERIAL
5/8" (16MM) Aluminum Poles
FLOOR MATERIAL
Reinforced Aluminum Alloy Frame & Wooden
PARTS
- 7.5' Telescoping
- Shoe Bags
- Stroge Bags
HARDWARE
- Metric Wrench *2
- Track Plug *4
- Slide Plate *8
- Mounting Plate *4
- 55cm M8 Bolt *8
- M8 Nut *8
- Elastic String *2

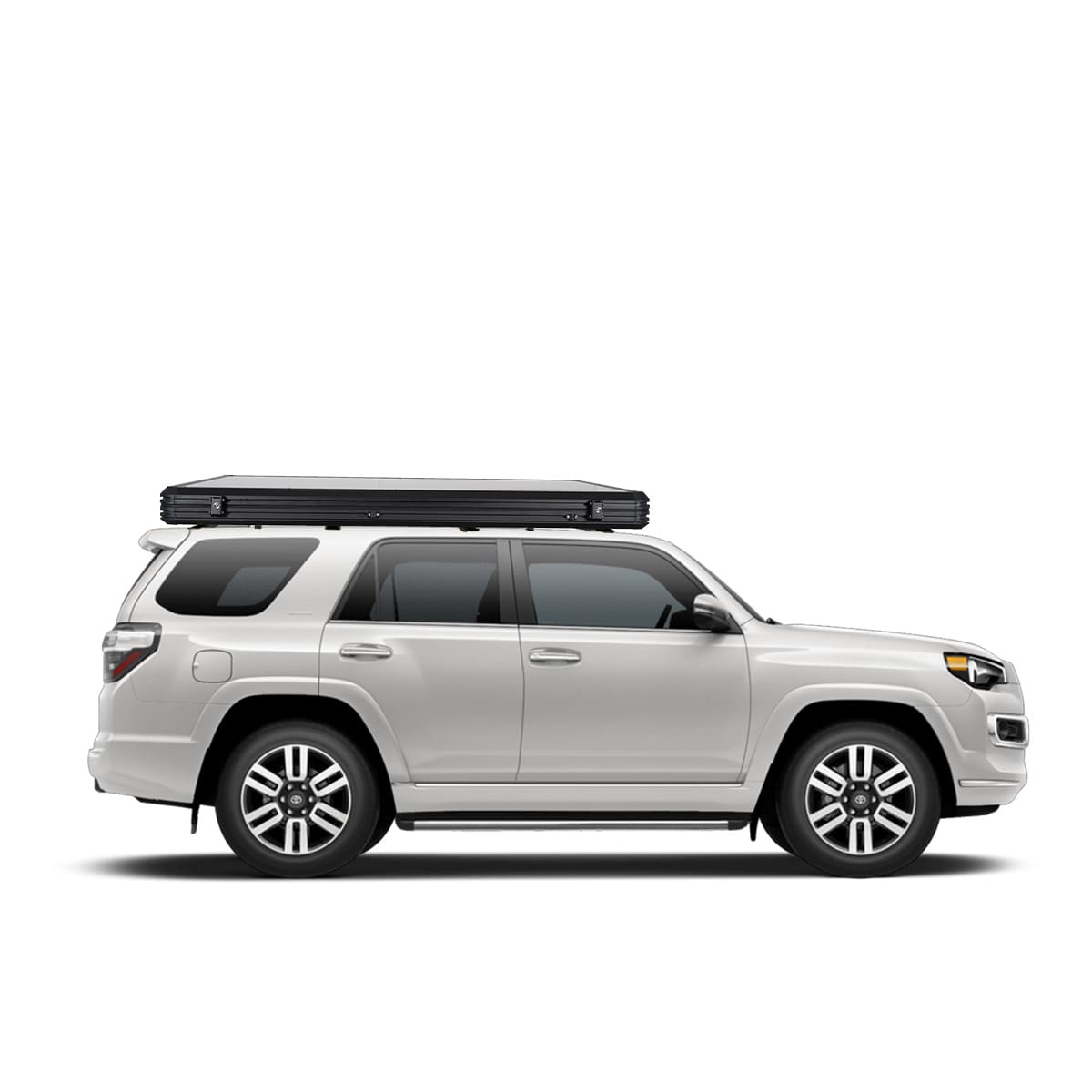

WHAT KINDS OF VEHICLES WOULD FIT IN RTT?

Fastest Setup of Any RTT
- Opens in less than 60 seconds, which means you can enjoy more time relaxing and spending time with your family.
- When closing the tent, you don't have to take the futon out to clean the contents, it stays inside.

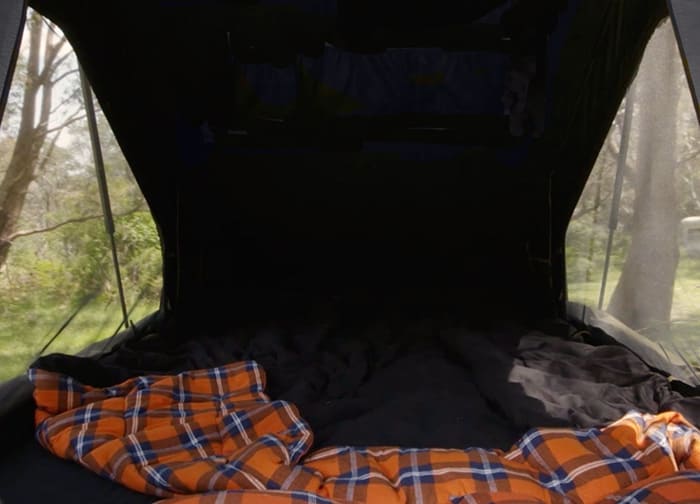

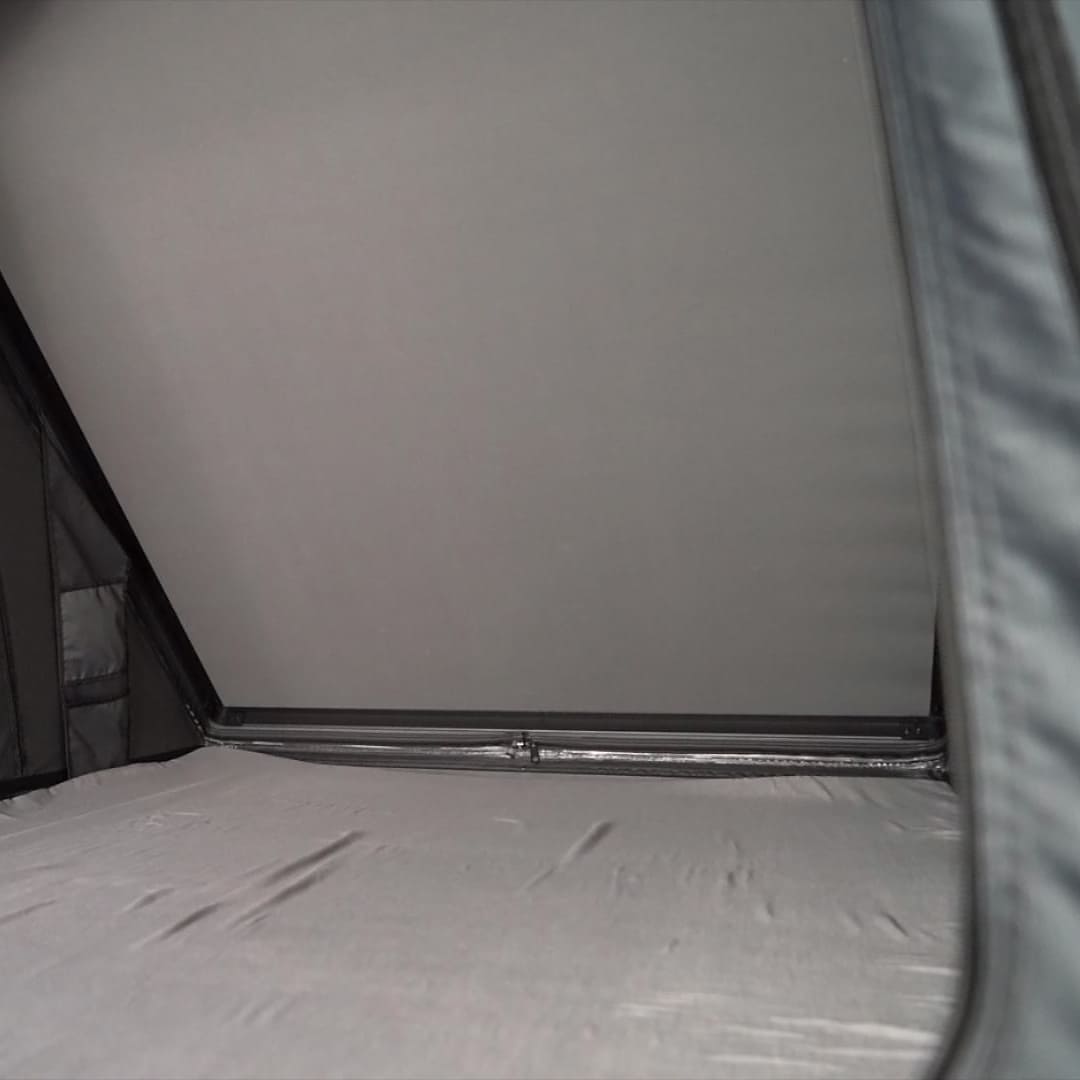

Full Size Sleeping Space
- Camping doesn't have to be tough. Sleep on luxury mattresses comparable to California kings.

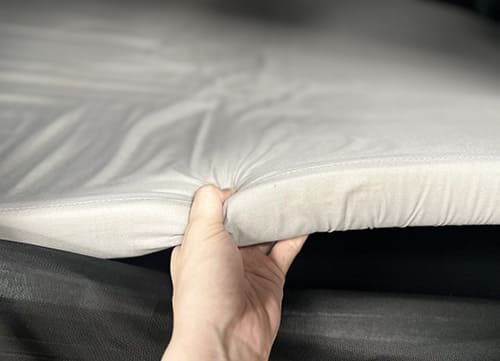

- A 2-inch high-density foam mattress allows you to sleep under the stars like a five-star hotel.

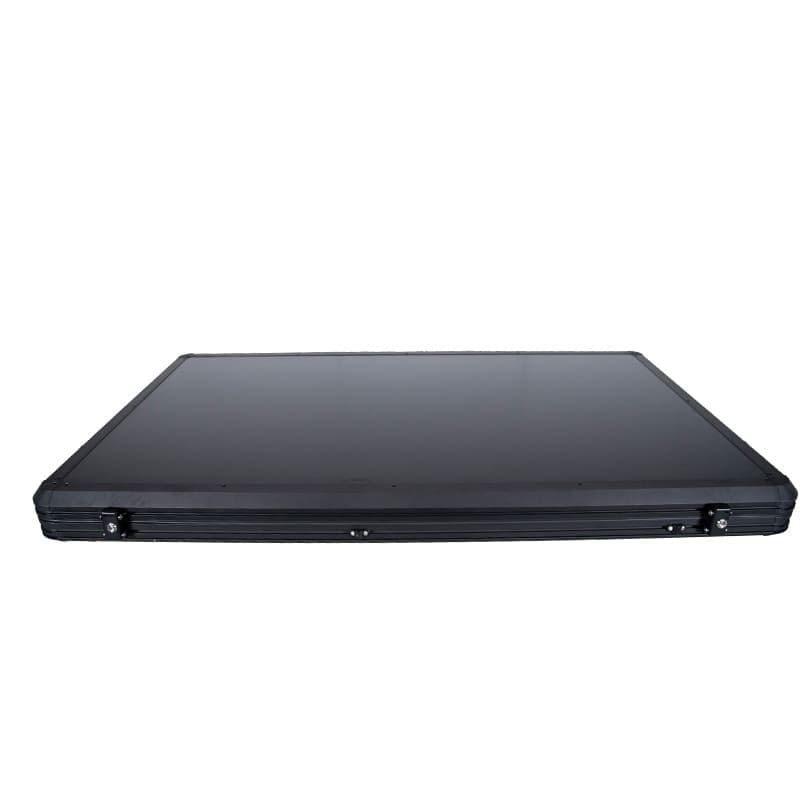

Expanded Aluminum Alloy Shell
- You don't have to worry about MPG, the 8-inch ultra-thin design reduces wind resistance and noise when driving.
- Mothership-grade plating addresses the potential for rust, corrosion, and withstands harsh weather conditions and rough terrain.

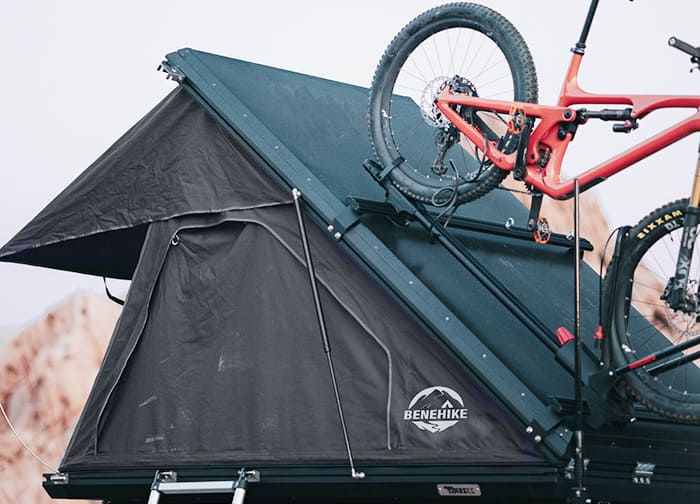

- Optional Crossbar Expansion: Bring bikes, kayaks, snowboards, or anything else you need for your next adventure.

Excellent Insulation Structure
Alumabode™ Premier Insulated Aluminum Tube Frame Floor & Top Insulated Liner designed to help prevent condensation buildup and retain heat, ensuring your tent stays at the ideal temperature all night long.

4 Season Protection

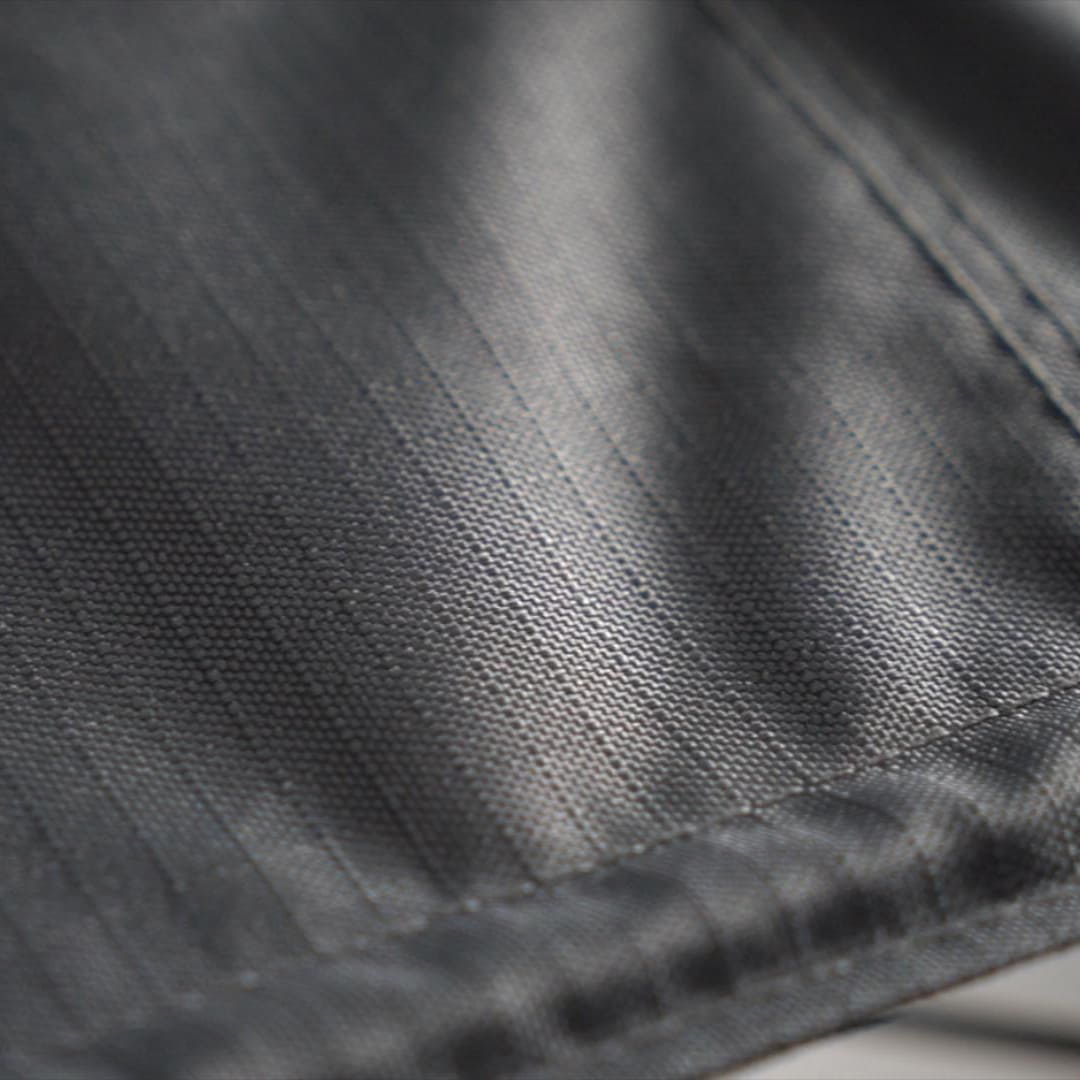

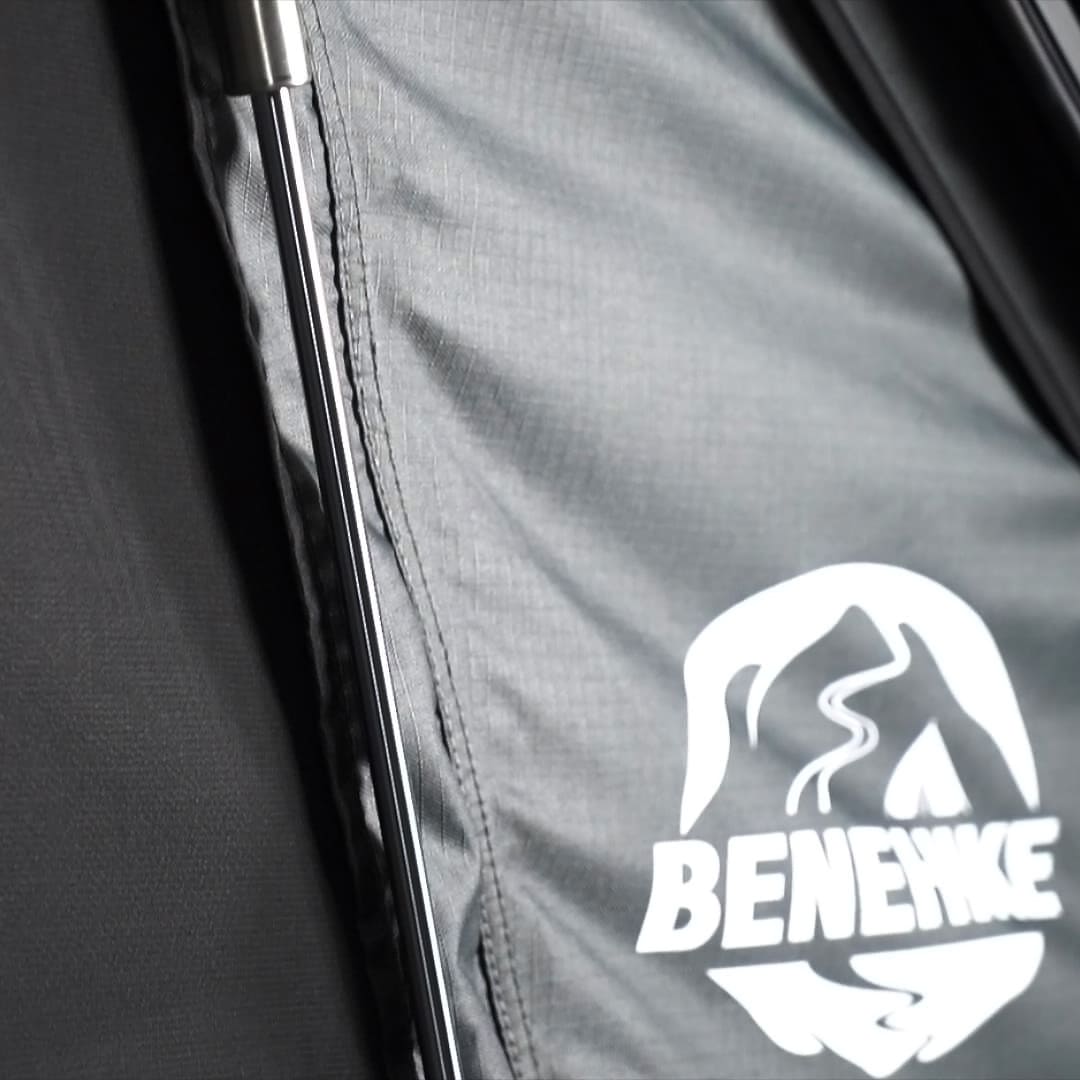

- Top quality 600D durable ripstop fabric: 2000mm waterproof rating, UV50 resistance, 280g polyester, can withstand harsh environmental conditions.
- Whether you're backcountry camping or enjoying a day at the beach, our tent fabrics will give you the toughness you need to stay safe and dry.

360° Views
2 Panoramic Windows & French Doors for unrivaled views & airflow. Roll down the shades for a deep sleep, or roll up all the windows to let the morning breeze in and enjoy the incredible views.
