8.2' x 8.2' Car Side Awning, Aluminum Case, Pull Out Rooftop Tent Shelter
- The back of the awning is where the mounting rails are located. The BeneHike® Aluminum Awning has an opening on the middle side.
- Measure the distance between each mounting location. Using this measurement, slide the bolts through the track and install them into the correct position. Likewise, the overhang should not exceed 27 inches on each side.
- Position the bolts so they line up with the brackets.
Install
- With the help of a friend, lift the awning onto the roof rack. Secure it with the provided nylon nuts. BEFORE TIGHTENING - Open the doors, tailgate and hood to make sure they don't touch.
- Make sure to tighten the awning brackets and nuts after 1000 miles of installation and periodically thereafter.
Use
- Unfasten the cover that encases the car side awning.
- Grasp the middle of the awning and roll it toward yourself.
- Once the awning is entirely unfurled, lower the right and left poles from the sturdy tube on the end you are grasping.
- Modify the height of the feet to your desired position.
- Secure the feet in place by rotating the bottom pole.
- Extend both supporting poles to the side and affix them to the roof of the awning.
- Move these poles to the front bracket and secure them in position.
Important: The installation hardware is included inside the Weather Cover.
For more information see our Manual.
Logistics I Transit Time I Costs
Standard I 5-10 days I FREE
Expedited I 3-7 days I $39.99
Fast I 5 days I $69.99
8.2' x 8.2' Quickly-open Awning
FEATURES
- Applicable to 99% Vehicle
- 30s Quick Open Switch
- Adjustable Up to 6.6'
- Small Footprint
- PU 3000mm
- Black Aluminum Enclosed Shell
- Lightweight Aluminum Square Arms
- More Stay Cable Attachment Points
- Compatible with Sidewalls, Extensions and Tents
SHADE
6.5 m³
CLOSED DIMENSIONS
100" x 6.3" x 6.3"h

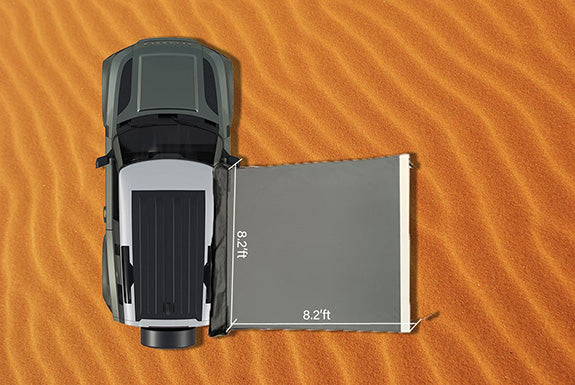

OVERALL DIMENSION
8.2' x 6.7' x 6.7'
AWNINGS
420D Oxford & 280G Polyester
FRAME
6063-T6 Aluminum Alloy
ACTUAL WEIGHT
31.5 lbs
COVER
Lightweight Aluminum Shell
SWITCH
Fidlock Buckle
HARDWARE
- Metric Wrench *2
- L Bracket *2
- Washer *2
- 20mm M8 Bolt *4
- 55mm M8 Bolt *4
- M8 Nut *8
- String *3 Tent Pegs *3
- Stroge Bag *1
8.2' x 6.7' Quickly-open Awning
FEATURES
- Applicable to 99% Vehicle
- 30s Quick Open Switch
- Adjustable Up to 6.6'
- Small Footprint
- PU 3000mm
- Black Aluminum Enclosed Shell
- Lightweight Aluminum Square Arms
- More Stay Cable Attachment Points
- Compatible with Sidewalls, Extensions and Tents
SHADE
6.2 m³
CLOSED DIMENSIONS
100" x 6.3" x 6.3"h
OVERALL DIMENSION
8.2' x 6.7' x 6.7'
AWNINGS
420D Oxford & 280G Polyester
FRAME
6063-T6 Aluminum Alloy
ACTUAL WEIGHT
30.8 lbs
COVER
Lightweight Aluminum Shell
SWITCH
Fidlock Buckle
HARDWARE
- Metric Wrench *2
- L Bracket *2
- Washer *2
- 20mm M8 Bolt *4
- 55mm M8 Bolt *4
- M8 Nut *8
- String *3 Tent Pegs *3
- Stroge Bag *1
6.7' x 9.8' Quickly-open Awning
FEATURES
- Applicable to 99% Vehicle
- 30s Quick Open Switch
- Adjustable Up to 6.6'
- Small Footprint
- PU 3000mm
- Black Aluminum Enclosed Shell
- Lightweight Aluminum Square Arms
- More Stay Cable Attachment Points
- Compatible with Sidewalls, Extensions and Tents
SHADE
6 m³
CLOSED DIMENSIONS
81" x 4" x 5"h
OVERALL DIMENSION
6.5' x 9.8' x 6.5'
AWNINGS
420D Oxford & 280G Polyester
FRAME
6063-T6 Aluminum Alloy
ACTUAL WEIGHT
25.5 lbs
COVER
Lightweight Aluminum Shell
SWITCH
Fidlock Buckle
HARDWARE
- Metric Wrench *2
- L Bracket *2
- Washer *2
- 20mm M8 Bolt *4
- 55mm M8 Bolt *4
- M8 Nut *8
- String *3 Tent Pegs *3
- Stroge Bag *1
222 ft³ of Space
The awning is a spacious and secure shelter with 222 ft³ or 6.3 m³ of protected space, perfect for families. It's easy to install and provides shade and shelter for outdoor adventures, camping, tailgating, or a day outside.
WHAT KINDS OF VEHICLES WOULD FIT IN AWNING?
Aluminum Construction
All the best components of current awnings have been packed into a black coated aluminum enclosure that is stylish, functional, lightweight and corrosion resistant.
30s Quick Open
Quick open and close with fidlock magnetic buckle, easy one-man operation, with ground bar and awning support arm.
Quick Installation
The fool-like screwing operation can quickly complete the installation! Slide 4 M8 screws into the 2 guide rails on the back of the awning, roughly position the L-bracket and the width of the awning, install the L-bracket on your roof rack, and need a person to assist you to lift the awning and align it Insert the 4 holes of quasi-L bracket and tighten 8 screws.
Stand Under the Awning
The adjustable pole made of sturdy aluminum alloy can be rapidly deployed or stowed away as needed. With a maximum height of 6.5 feet (2 meters), even individuals of considerable stature can find ample headroom under the shelter.
Ripstop Fabric with PU2000mm and UV50+
Crafted from sturdy 420D Oxford fabric and 280g of breathable polyester and cotton blend, this awnings offers exceptional protection from the elements.
Expanded Annex Room
Our Annex offers a versatile solution to elevate your outdoor experience. With a selection of canvas and mesh walls that can be easily attached, as well as sturdy straps and buckles, designed to meet all your outdoor needs. It's no surprise that many outdoor enthusiasts prefer to travel light and rely on our accessories as their primary shelter.
