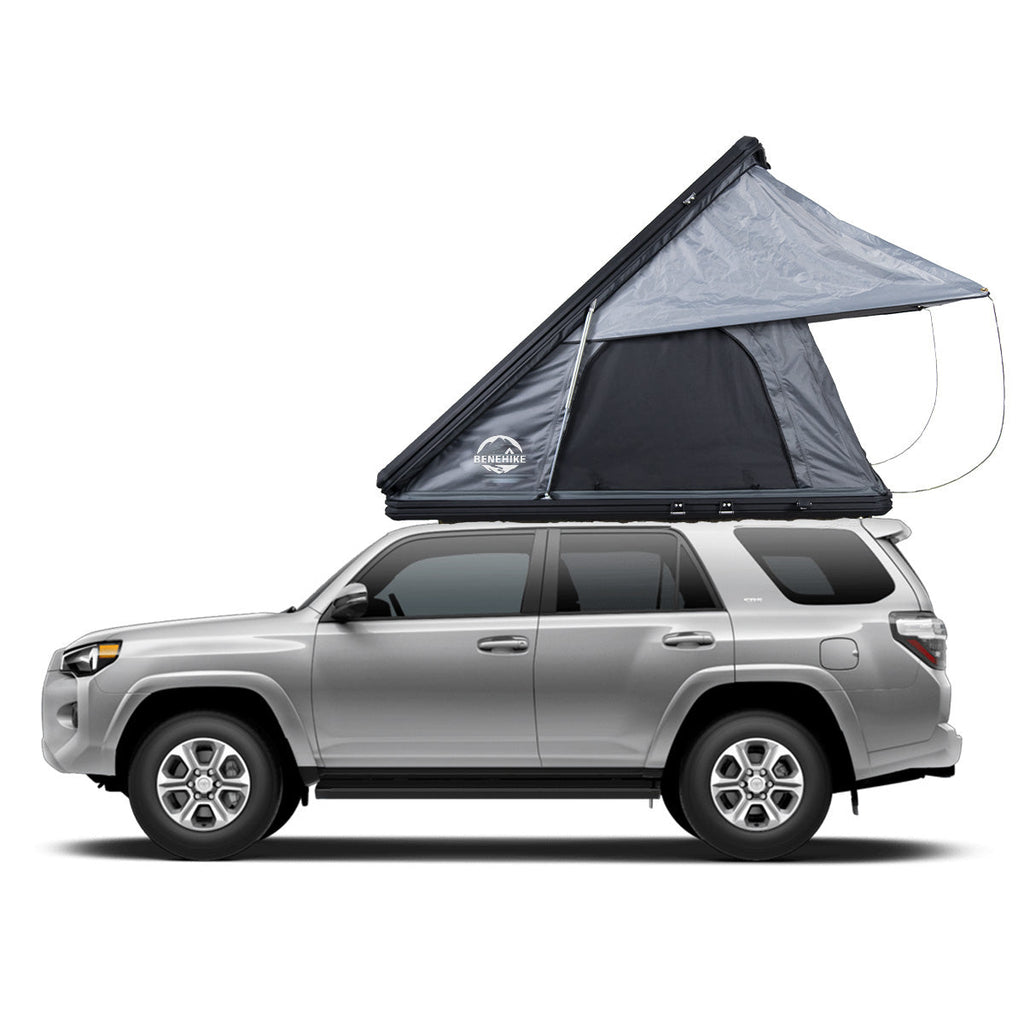

Ascendll Aluminum Hard Shell Side Open Rooftop Tent, 3~4 Person

$2,399.00 $3,699.00
SKU: BH-AHT132-54" x 83" x 63" (3~4 person)-Black

Size
Color
INSTALLATION
  1. Ascendll™ is designed to mount to two rails that are at least 30 inches apart. Platform mounts are available, but not required, and can make installation trickier in some cases.
  2. On some makes of vehicles, the stock cross bar is too close to the roof to provide clearance for the mounting hardware. In these cases, we recommend that you contact our customer service team for resolution.
  3. The Ascendll™ weighs 136 lbs and your crossbar should be able to support the weight of the tent itself. Your cross bars are rated for dynamic loads (when your vehicle is traveling at highway speeds) and can hold 5-7 times that rated dynamic load when your car is parked. Almost all modern cars and crossbars can support the weight of the Ascendll™ and its occupant without any problem.
  4. Lift the tent onto your crossbars (you'll need a friend or two) so that the large end of the Ascendll™ is facing the rear of the vehicle and the hinges are at the front of the vehicle.
  5. Make sure the tent is positioned roughly where you want it. Usually if it looks in-game it's correct! For SUVs and hatchbacks, open your trunk and push the tent back until it just touches the open trunk. This way you can make sure the tent doesn't interfere with the operation of your trunk.
  6. Ready to install the kit.

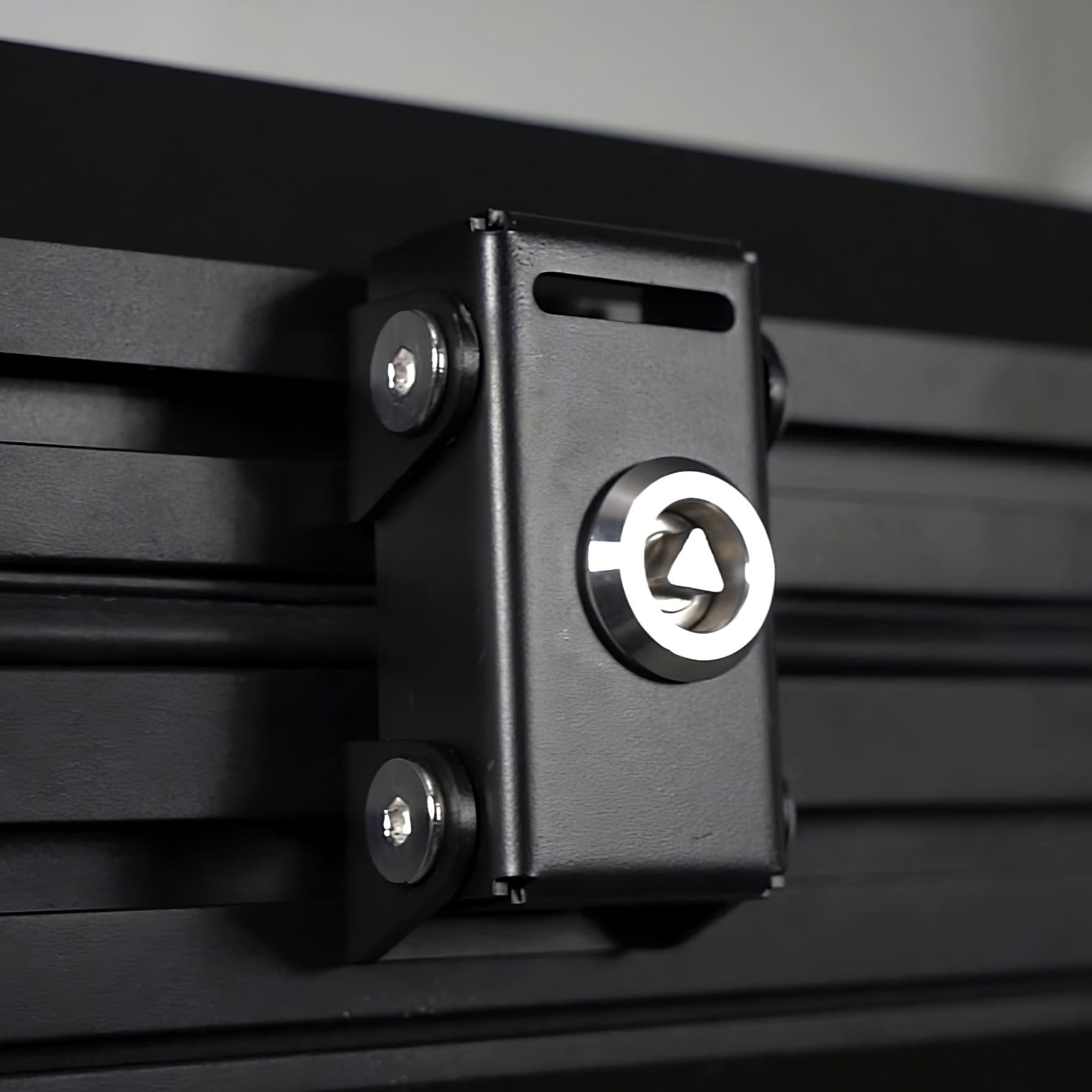

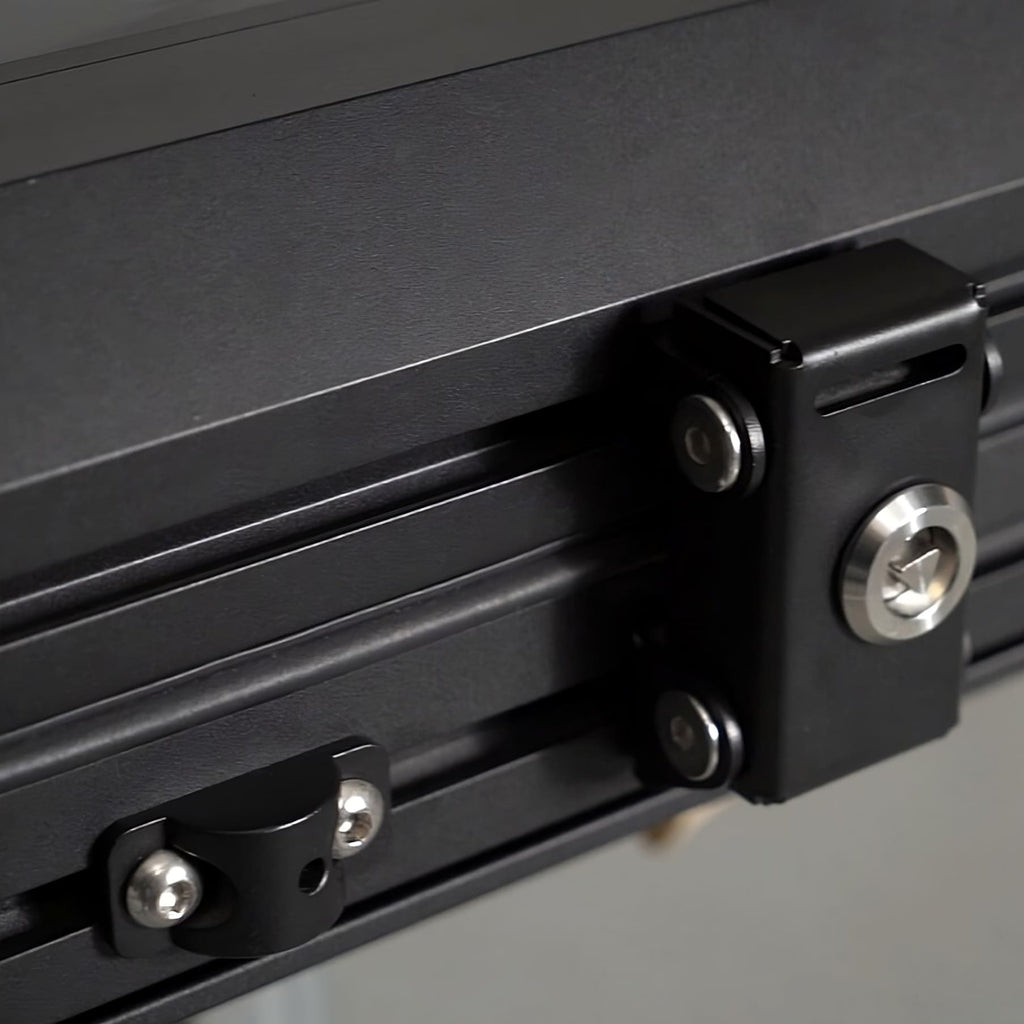

  7. Using the 4 original mounting kits with U-brackets, slide each into the mounting rails, followed by the M8 bolt and plate kit. Repeat for each corner of the tent.
  8. Start with a partner in the front or back, then lift up the front or back and slide the mounting kit onto the inside of the crossbar, repeating for each corner.
  9. Thread the dangling M8 bolts through the mounting U-brackets, then hand-tighten the nuts to attach the mounting kit to the M8 bolts. Repeat for all four corners.
  10. Tighten the nuts evenly and snugly, making sure you have the Ascendll™ lined up exactly where you want it on the roof before tightening the nuts last. When your hardware is properly tightened, the bottom bracket around the bars will start to flex.

For more information please view our Manual, or contact the customer service team.

SHIPPING & RETURNS

LTL-Truck Shipping

Logistics I Transit Time I Costs

LTL Shipping I 7-15 days I FREE

Ascendll RTT, 3 Person

FEATURES

  • Unfolds in Just 10s
  • Shell Just 8" for Aerodynamics
  • Weights Minimal Impact on MPG
  • Light-Suppressing Technology
  • 100% Moisture Barrier
  • Larger Wraparound Awning
  • No Need to Take Out Bedding

SLEEPS

3~4 Person

WEIGHT CAPACITY

1000 lbs

CLOSED DIMENSIONS

83" x 52" x 8"h

OPEN DIMENSIONS

83" x 54" x 63"h

MATTRESS SIZE

82" x 50" x 2"h

ACTUAL WEIGHT

160 lbs

WINDOWS

3 (w/ door)

TENT MATERIAL

  • 600D Oxford & 280G Polyester
  • PU 2000mm
  • UPF 50+

RAINFLY MATERIAL

  • 420D Oxford
  • PU 3000mm
  • UPF 50+

MATTRESS MATERIAL

High-Density 2" Foam

ENTRANCE MATERIAL

Panel & Mesh

UPPER MATERIAL

5/8" (16MM) Aluminum Poles

FLOOR MATERIAL

Reinforced Aluminum Tube Plate & Wooden

PARTS

  • 7.5' Telescoping
  • Stroge Bags
  • Internal Storage Bags

HARDWARE

  • Metric Wrench *2
  • Hexagonal Spanner *2
  • Track Plug *4
  • Slide Plate *8
  • Mounting Plate *4
  • 55cm M8 Bolt *8
  • M8 Nut *8

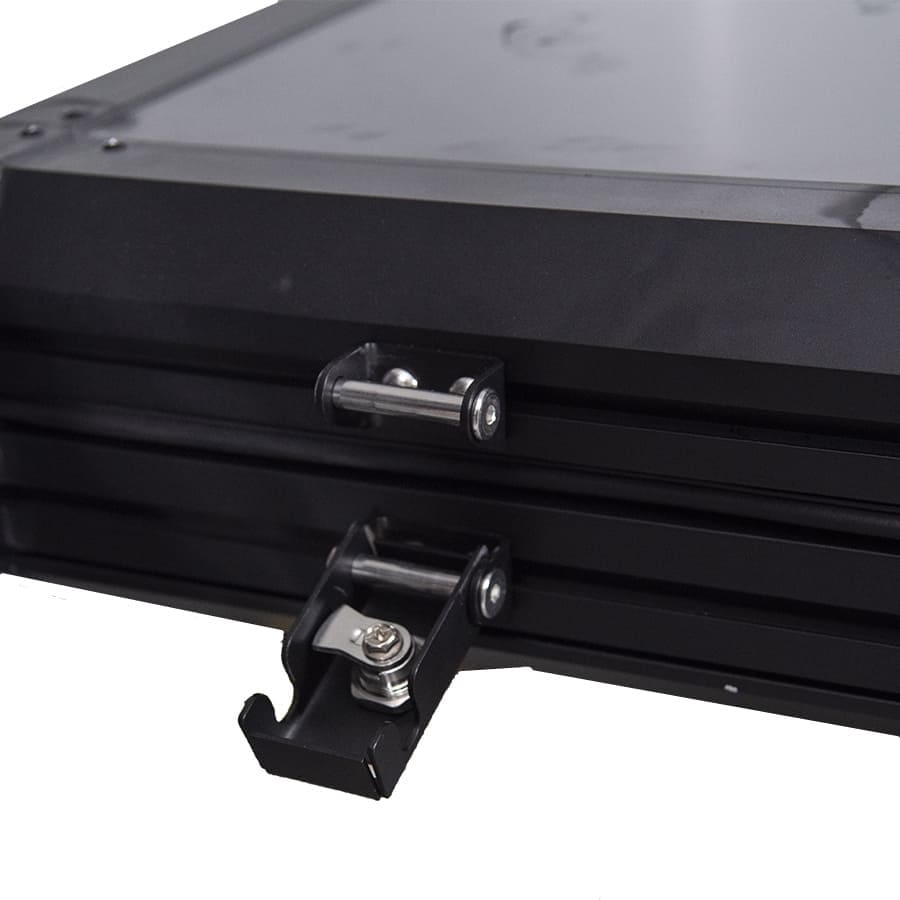

  • Cam Lock *2

Ascendll RTT, 2 Person

FEATURES

  • Unfolds in Just 10s
  • Shell Just 8" for Aerodynamics
  • Weights Minimal Impact on MPG
  • Light-Suppressing Technology
  • 100% Moisture Barrier
  • Larger Wraparound Awning
  • No Need to Take Out Bedding

SLEEPS

2~3 Person

WEIGHT CAPACITY

1000 lbs

CLOSED DIMENSIONS

83" x 49" x 8"h

OPEN DIMENSIONS

83" x 51" x 63"h

MATTRESS SIZE

82" x 49" x 2"h

ACTUAL WEIGHT

136 lbs

WINDOWS

3 (w/ door)

TENT MATERIAL

  • 600D Oxford & 280G Polyester
  • PU 2000mm
  • UPF 50+

RAINFLY MATERIAL

  • 420D Oxford
  • PU 3000mm
  • UPF 50+

MATTRESS MATERIAL

High-Density 2" Foam

ENTRANCE MATERIAL

Panel & Mesh

UPPER MATERIAL

5/8" (16MM) Aluminum Poles

FLOOR MATERIAL

Reinforced Aluminum Tube Plate & Wooden

PARTS

  • 7.5' Telescoping
  • Stroge Bags
  • Internal Storage Bags

HARDWARE

  • Metric Wrench *2
  • Hexagonal Spanner *2
  • Track Plug *4
  • Slide Plate *8
  • Mounting Plate *4
  • 55cm M8 Bolt *8
  • M8 Nut *8
  • Cam Lock *2

Wedge Shape RTT, 2 Person

FEATURES

  • 60s Quickly Set Up
  • The Most Stable Wedge Shape
  • With Easy Install Brackets
  • Thermal iInsulation Shell
  • No Need to Take Out Bedding
  • 3 Entrances
  • Removable and Washable Mattress

SLEEPS

2~3 Person

WEIGHT CAPACITY

900 lbs

CLOSED DIMENSIONS

83" x 49" x 14"h

OPEN DIMENSIONS

83" x 49" x 59"h

MATTRESS SIZE

82" x 48" x 2"h

ACTUAL WEIGHT

145 lbs

WINDOWS

3

TENT MATERIAL

  • 600D Oxford & 280G Polyester
  • PU 2000mm
  • UPF 50+

RAINFLY MATERIAL

  • 420D Oxford
  • PU 2000mm
  • UPF 50+

MATTRESS MATERIAL

High-Density 2" Foam

ENTRANCE MATERIAL

Panel & Mesh

UPPER MATERIAL

5/8" (16MM) Aluminum Poles

FLOOR MATERIAL

Reinforced Aluminum Alloy Frame & Wooden

PARTS

  • 7.5' Telescoping
  • Shoe Bags
  • Stroge Bags

HARDWARE

  • Metric Wrench *2
  • Track Plug *4
  • Slide Plate *8
  • Mounting Plate *4
  • 55cm M8 Bolt *8
  • M8 Nut *8
  • Elastic String *2

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Logan

Just chilling this arvo with a beer.
Fitted up the Ascendll TENT to the big 200.
Fits Awesome.

L
Lucas

Sitting in camp, having a drink while watching the sunset. It's been a while, but we're back in our own.

benehike 4wd

3-4 Campers

Luxurious California bed, big enough to sleep with furry. Also store a sleeping bag, quilt or blanket inside.

benehike 4wd

Fastest Setup of any RTT

  • Discover the convenience of our quick-pitch tent, which sets up in under a minute. Spend less time fussing with poles and more time enjoying the great outdoors with your loved ones.
  • When it's time to pack up and head home, you'll appreciate that the futon stays securely inside the tent, making clean up a breeze.
  • Say goodbye to the hassle of traditional tent set up and hello to more time making memories with those who matter most.
benehike 4wd

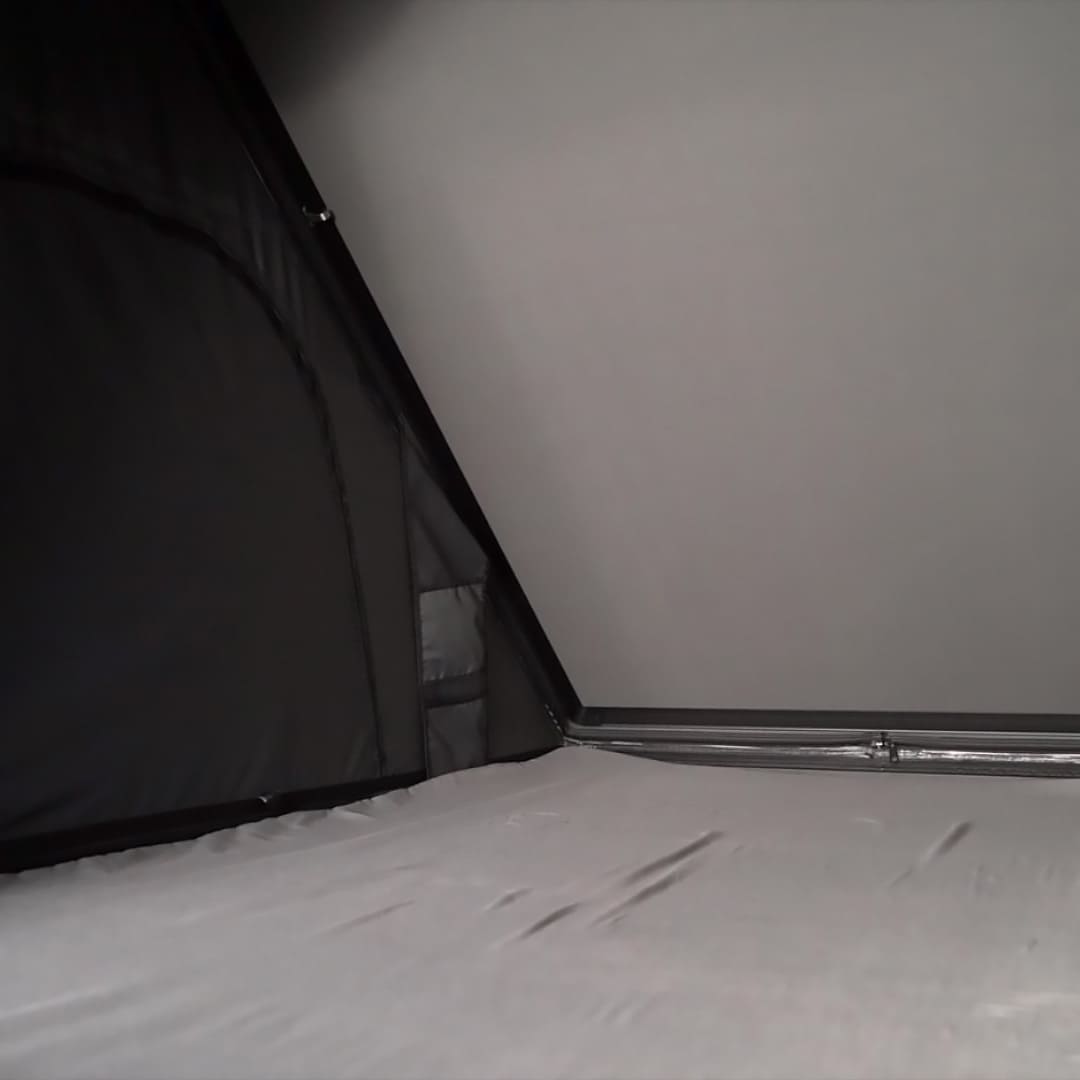

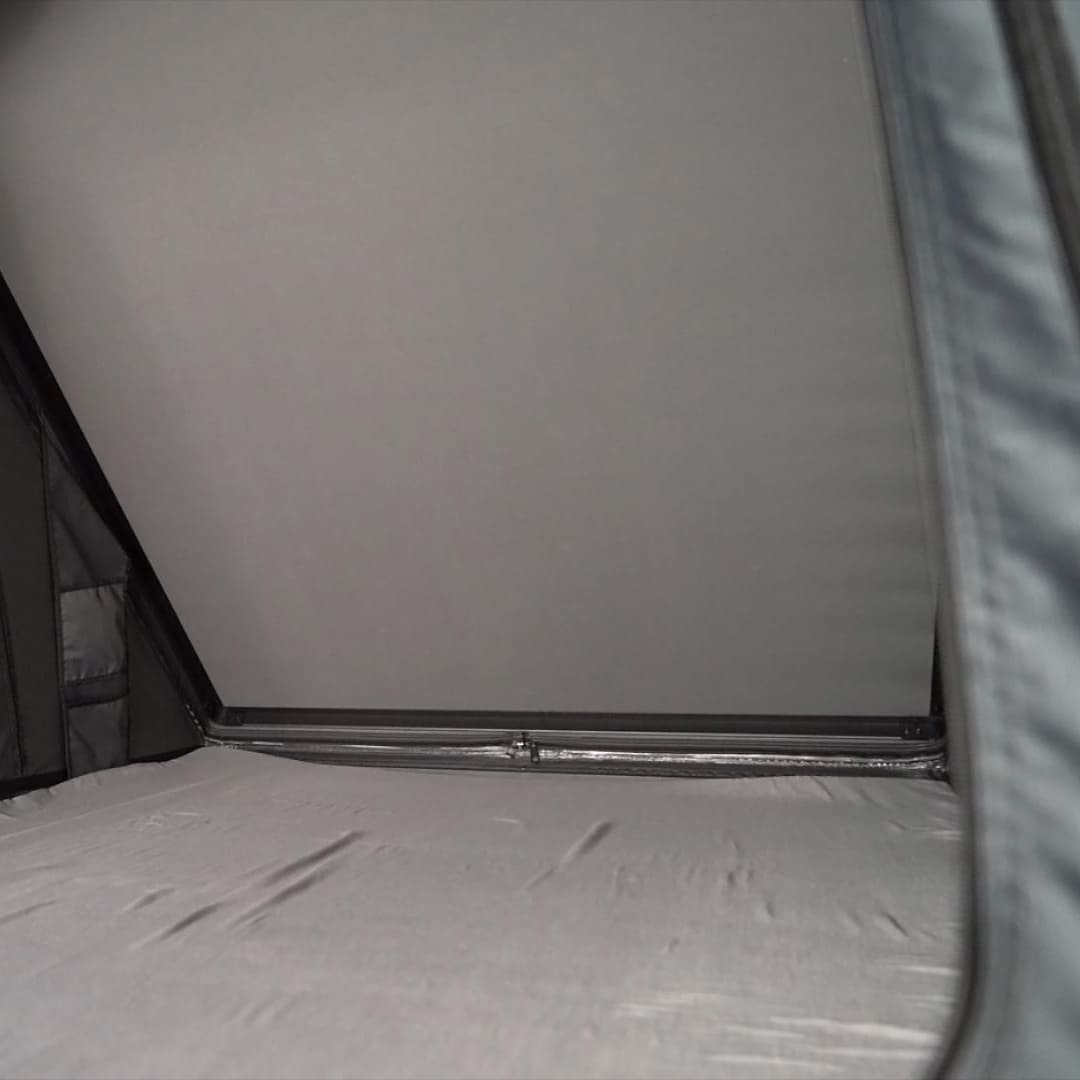

Full Size Sleeping Space

  • Enjoy a night under the stars with all the comforts of home. Our camping mattresses provide a luxurious sleeping experience comparable to a California king bed.
  • With a 2-inch high-density foam mattress, you can rest comfortably and wake up refreshed and ready to tackle the day's adventures.
benehike 4wd

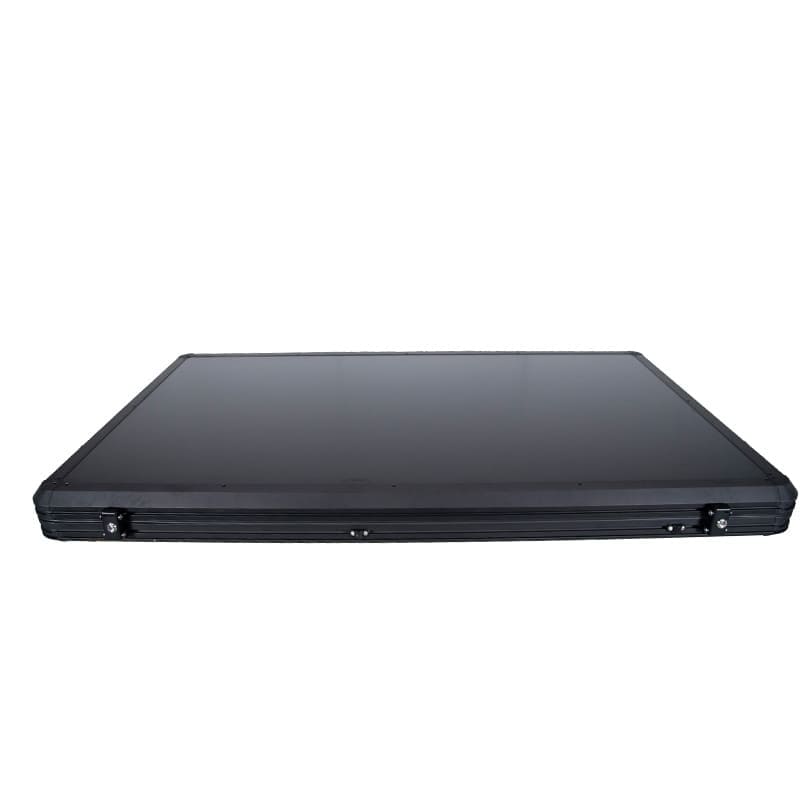

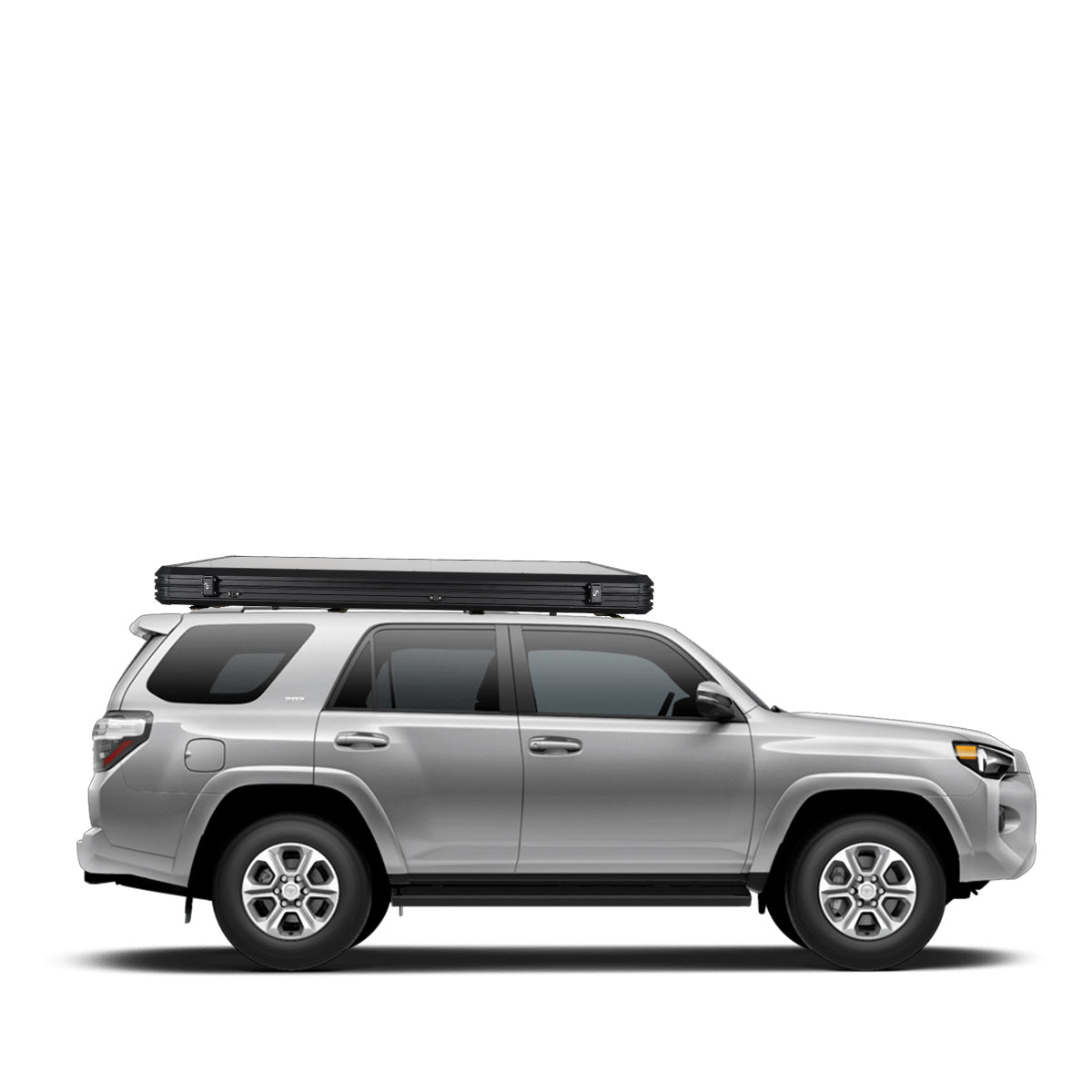

Expanded Aluminum Alloy Shell

  • Get ready to experience a whole new level of convenience with our latest car accessory, the MPG-optimized roof rack! Thanks to its 8-inch ultra-thin design, this rack reduces wind resistance and noise while you drive.
  • Plus, the mothership-grade plating ensures that your car remains protected from rust, corrosion, and other harsh weather conditions. With the optional crossbar expansion, you can bring along your bikes, kayaks, snowboards, or any other equipment you need for your next adventure.
benehike 4wd

Excellent Insulation Structure

  • Introducing our innovative Alumabode™ Premier Insulated Aluminum Tube Frame Floor & Top Insulated Liner, the perfect solution to your camping needs.
  • This cutting-edge technology has been designed to help prevent condensation buildup and retain heat, ensuring that your tent stays at the ideal temperature all night long. you can rest easy knowing that your camping experience will be a comfortable and memorable one.
benehike 4wd

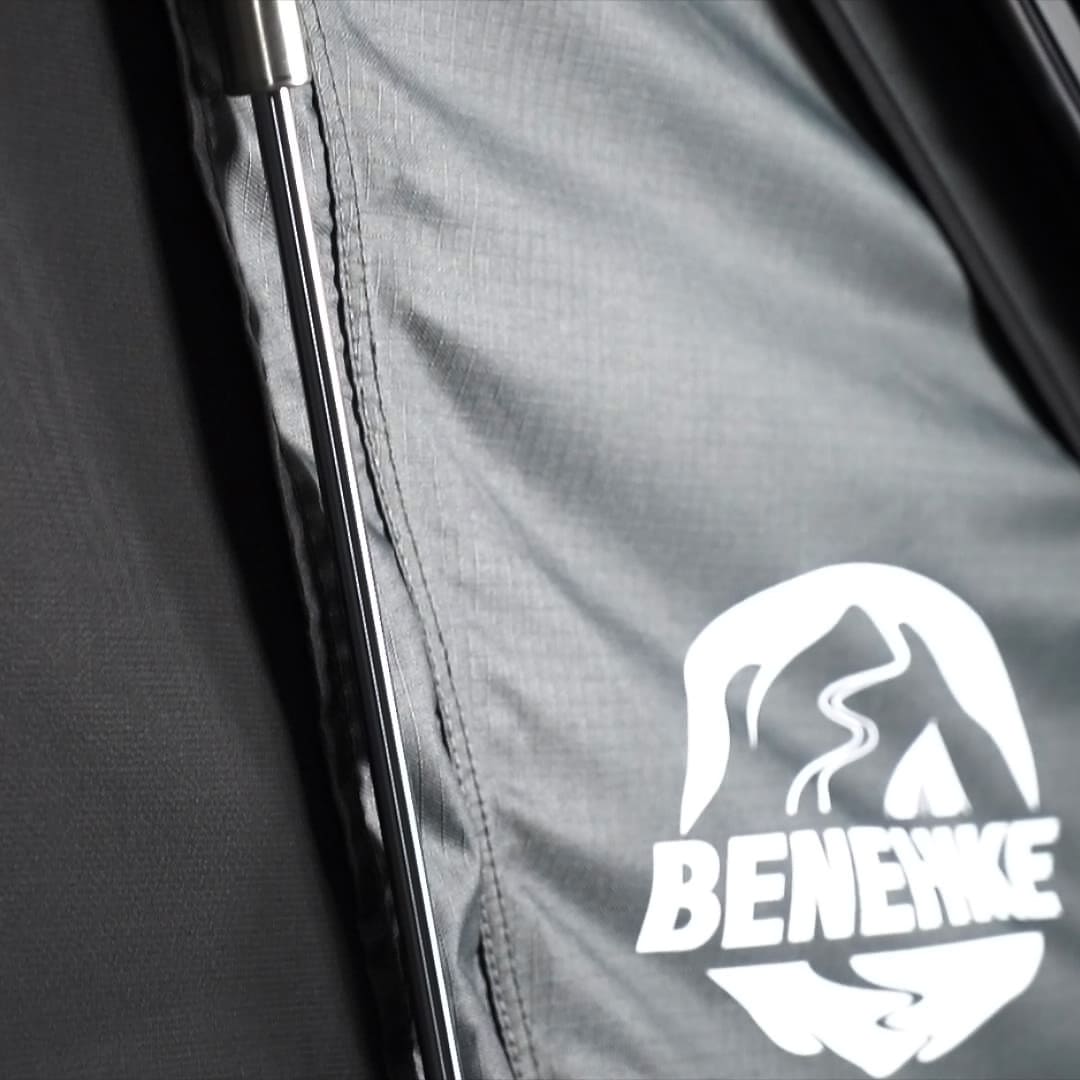

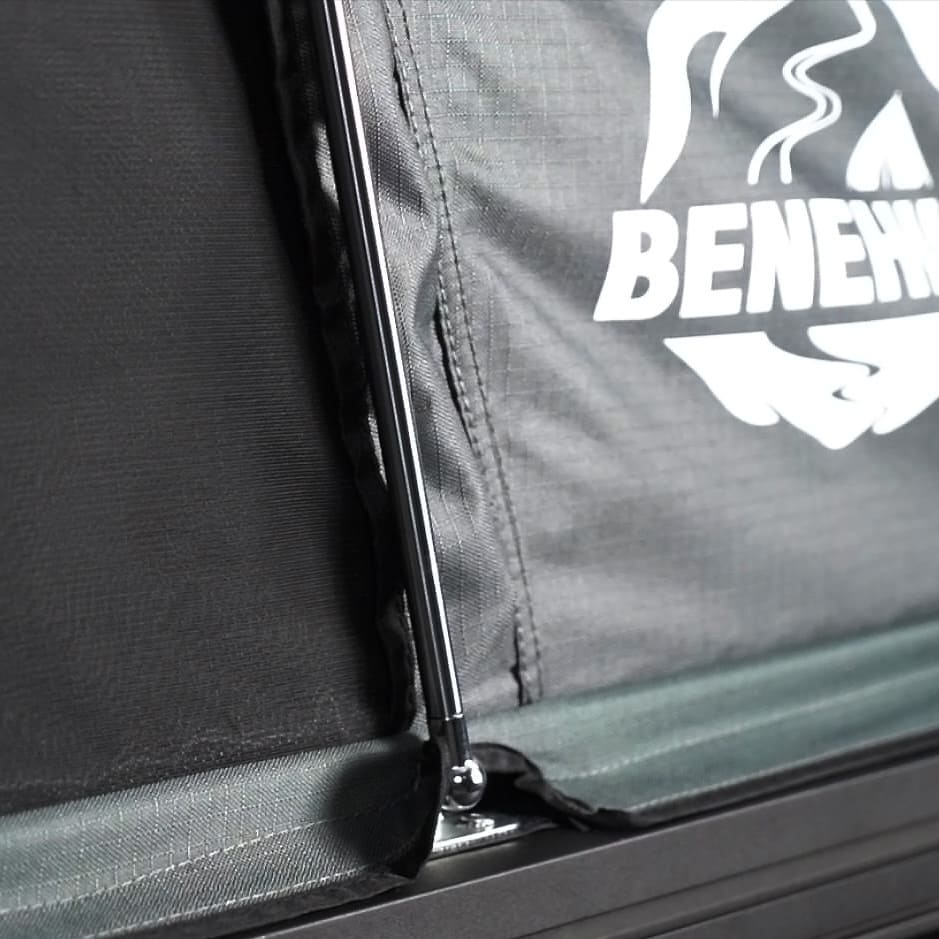

4 Season Protection

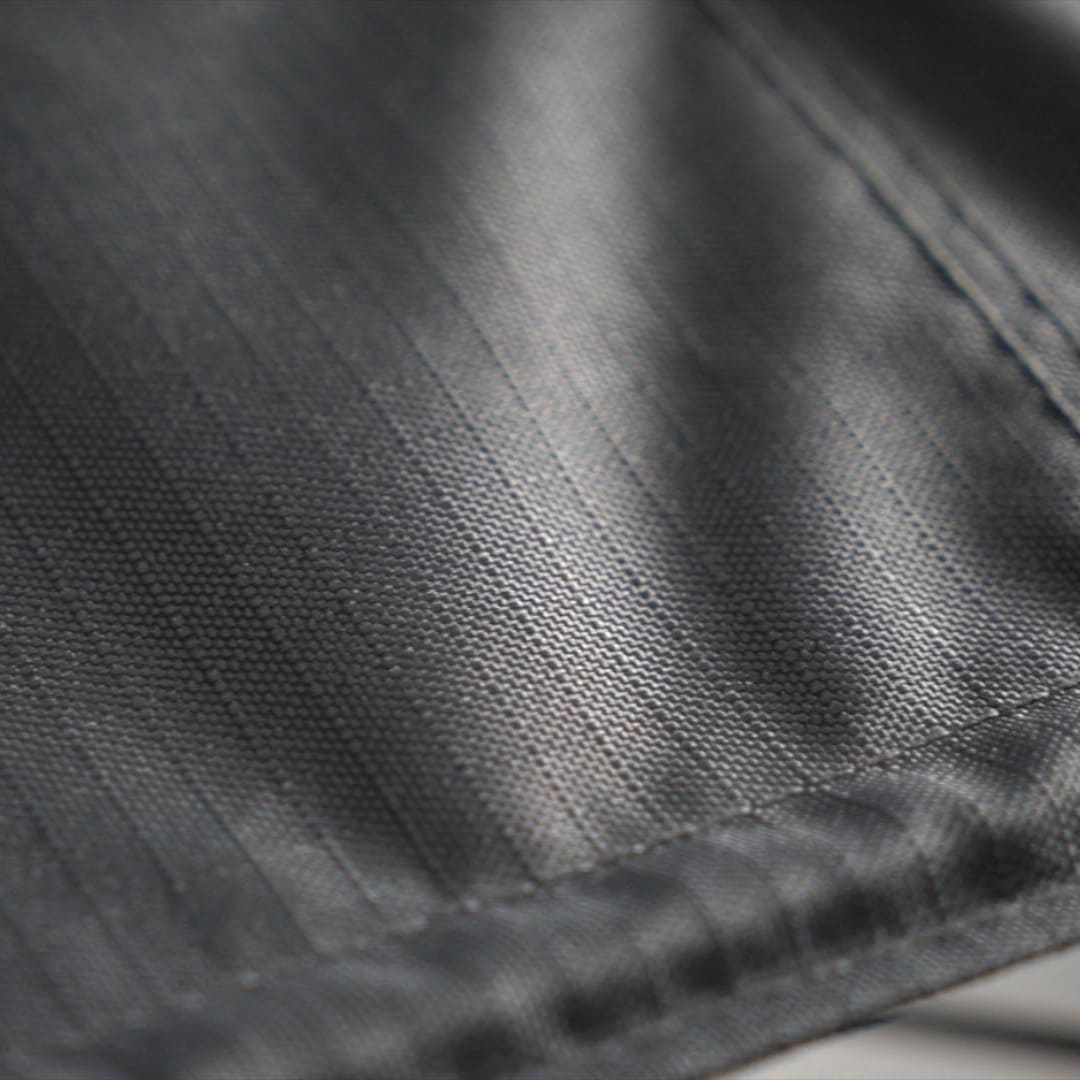

  • Top quality 600D durable ripstop fabric: 2000mm waterproof rating, UV50 resistance, 280g polyester, can withstand harsh environmental conditions.
  • Whether you're backcountry camping or enjoying a day at the beach, our tent fabrics will give you the toughness you need to stay safe and dry.
benehike 4wd

360° Views

Experience unobstructed views and refreshing airflow like never before with our two panoramic windows and French doors. With easy-to-use roll-down shades, you can have complete control over the lighting and privacy of your space. And when it's time to welcome the fresh air in, simply roll up the windows and embrace the breathtaking views.
